Good price online

products details

Home > Products >
Indoor Outdoor Armored Fiber
>
Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use
All Category

Outdoor Armored Fiber Optic Cable

Indoor Outdoor Armored Fiber

Tactical Fiber Optic Cable

Photoelectric Composite Cable

Outdoor Fiber Optic Cable

Indoor Fiber Optic Cable

Fiber Optic Patch Cord

Fiber Optic Pigtail

Fiber Optic Accessories

Fiber Optic Terminal Box

Fiber Optic Patch Panel

Fiber Optic Splitter

Fiber Optic Module
Contact Us
sales@hxfiber.com
Contact Now
Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use
  • name
  • name
  • name
  • name
  • name
  • name

Armored Fiber Optic Cable with Anti-Rodent Anti-Bending and Crush Resistance for Indoor Outdoor Use

Brand Name: HXFiber
Model Number: HX-GQJG-08
MOQ: 1000
Price: CN¥0.4825-0.6203
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Number Of Conductors:
≥ 10
Number Of Cores:
1-24 Core
Fiber Type:
OM2 / OM3 / OM4 / G652D / G657A1 / G657A2
Armored Tube Material:
Stainless Steel
Outer Sheath Material:
PVC, LSZH, TPU, PE
Working Temperature:
-20℃~+70℃
Dynamic Bending Radius:
20D
Static Bending Radius:
10D
Cable OD:
3.0mm/4.0mm/5.0mm
Cable Loss:
1310nm ≦0.35 ; 1550nm ≦0.25
Long Term Tensile:
300N
Short Term Tensile:
500N
Fiber Mode:
Singlemode, MultiMode
Metal Braiding:
Stainless Steel
Tensile Material:
Kevlar
Highlight:

Anti-Rodent Armored Fiber Optic Cable

,

Anti-Bending Armored Fiber Cable

,

Crush Resistance Fiber Optic Cable

Product Description
Armored Anti-Rodent Anti-Bending Crush Resistance Fiber Optic Cable
Steel armored fiber optic cable product overview Steel armored fiber optic cable close-up view
Product Specifications
Item Value
Type Outdoor/Indoor Fiber Optic Cable
Place of Origin Guangdong CHINA
Brand OEM
Number of Conductors ≥ 1
Product Name Steel Armored Fiber Optic Cable
Application FTTH, LAN, Data Center, CATV
Fiber 9/125um, 62.5/125um, 50/125um
Cable OD 3.0mm/4.0mm/5.0mm
HS CODE 8544700000
Armored Spiral steel armored protected
Mode Singlemode, MultiMode
SM / MM G.652D, G.657A1 or G.657A2, OM1, OM2, OM3, OM4, OM5
Metal Braiding Stainless steel
Tensile Kevlar
Temperature (°C) -20~+75°C
Cable loss (db/km) 1310nm ≦0.35; 1550nm ≦0.25
Tensile (N) Long Term: 300N; Short Term: 500N
Bending Radius (mm) Dynamic 20D, Static 10D
Armored fiber optic cable construction details Armored fiber optic cable cross-section Armored fiber optic cable installation example Armored fiber optic cable application scenario
Armored Fiber Optic Cable Features
Fiber Type: G.652D, G.657A1 or G.657A2 single mode fiber and OM1, OM2, OM3, OM4 multimode fiber.
  • Mini diameter SUS spring tube reinforced ensures good crush resistance
  • Kevlar strengthened provide good tensile strength
  • Outer jacket complies with UL, RoHS standards
Armored fiber optic cable technical diagram Armored fiber optic cable specifications diagram
Available Core Configurations
1 Core - Armored Fiber Optic Cable, Anti-Rodent, Anti-Bending
1 core armored fiber optic cable diagram 1 core armored fiber optic cable specification
2 Cores - Armored Fiber Optic Cable, Anti-Rodent, Anti-Bending
2 core armored fiber optic cable diagram 2 core armored fiber optic cable specification
4 Cores - Armored Fiber Optic Cable, Anti-Rodent, Anti-Bending
4 core armored fiber optic cable diagram 4 core armored fiber optic cable specification
6 Cores - Armored Fiber Optic Cable, Anti-Rodent, Anti-Bending
6 core armored fiber optic cable diagram 6 core armored fiber optic cable specification
12 Cores - Armored Fiber Optic Cable, Anti-Rodent, Anti-Bending
12 core armored fiber optic cable diagram 12 core armored fiber optic cable specification

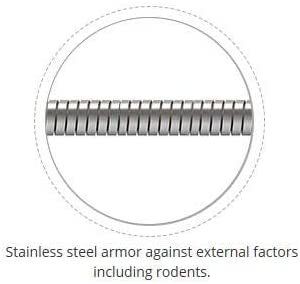

Stainless Steel Armored Tube
Stainless steel armored tube construction Stainless steel armored tube close-up Stainless steel armored tube manufacturing Stainless steel armored tube quality inspection
Additional Products
Additional fiber optic product 1 Additional fiber optic product 1 alternate view Additional fiber optic product 2 Additional fiber optic product 2 alternate view Additional fiber optic product 3 Additional fiber optic product 3 alternate view Additional fiber optic product 4 Additional fiber optic product 4 alternate view Additional fiber optic product 5 Additional fiber optic product 5 alternate view Additional fiber optic product 6 Additional fiber optic product 6 alternate view Additional fiber optic product 7 Additional fiber optic product 7 alternate view Additional fiber optic product 8 Additional fiber optic product 8 alternate view Additional fiber optic product 9 Additional fiber optic product 9 alternate view Additional fiber optic product 10 Additional fiber optic product 10 alternate view Additional fiber optic product 11 Additional fiber optic product 11 alternate view Additional fiber optic product 12 Additional fiber optic product 12 alternate view Additional fiber optic product 13 Additional fiber optic product 13 alternate view Additional fiber optic product 14 Additional fiber optic product 14 alternate view Additional fiber optic product 15 Additional fiber optic product 15 alternate view Additional fiber optic product 16 Additional fiber optic product 16 alternate view Additional fiber optic product 17 Additional fiber optic product 17 alternate view Additional fiber optic product 18 Additional fiber optic product 18 alternate view Additional fiber optic product 19 Additional fiber optic product 19 alternate view
Company Overview
Company facility and manufacturing plant overview Company headquarters and operations center
Industry Exhibitions
Trade show exhibition booth and participation Industry conference and networking events
Business Cooperation
Partnership and collaboration initiatives Global business partnerships network
Quality Certifications
Industry quality standards and certifications Compliance and regulatory certifications
Production Line & Manufacturing
Fiber optic cable production line equipment Manufacturing process overview Quality control and testing procedures Production line automation systems Raw materials and component preparation Material handling and storage Assembly and fabrication processes Technical assembly operations Final product inspection station Quality assurance testing Packaging and labeling operations Finished goods preparation Advanced manufacturing technology Production efficiency systems Clean room manufacturing environment Controlled production facilities Technical staff and operations team Skilled workforce in production Research and development laboratory Innovation and testing facilities Manufacturing capacity and scale Production volume capabilities Equipment maintenance and calibration Precision manufacturing tools Technical documentation and processes Standard operating procedures Safety protocols and measures Workplace safety standards Environmental controls and systems Manufacturing environment management Continuous improvement initiatives Process optimization efforts Final product verification Completed manufacturing cycle

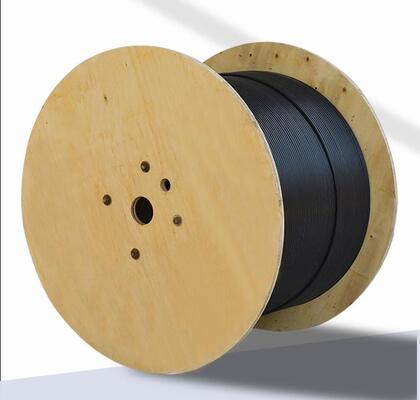

Packaging & Shipping
Professional packaging materials and methods Product packaging standards Shipping preparation and logistics Distribution center operations International shipping capabilities Global logistics network Quality packaging for protection Secure shipping solutions
Tags:
