Stainless Steel Armored Fiber Optic Cable with G657A2 Fiber Anti-Rodent and Anti-Bending for Indoor Outdoor Use

All Category

Outdoor Armored Fiber Optic Cable

Stainless Steel Armored Fiber Optic Cable with G657A2 Fiber Anti-Rodent and Anti-Bending for Indoor Outdoor Use

Brand Name:	HXFiber
Model Number:	HX-GQJG-13
MOQ:	1000
Price:	CN¥0.5514-0.6892

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Number Of Conductors:

Number Of Cores:

1-48 Core

Fiber Type:

OM1/OM2/OM3/OM4/G652D/G657A1/G657A2

Armored Tube Material:

Stainless Steel

Outer Sheath Material:

PVC,LSZH,PU,PE

Working Temperature:

-20℃~+70℃

Dynamic Bending Radius:

Static Bending Radius:

Cable OD:

3.0mm/4.0mm/5.0mm/6.0mm/7.0mm/8.0mm

Cable Loss:

850nm ≦3.5 ; 1300nm ≦1.5

Long Term Tensile:

Short Term Tensile:

Fiber Diameter:

9/125um, 62.5/125um, 50/125um

Armored Protection:

Spiral Steel Armored

Fiber Mode:

Singlemode, MultiMode

Highlight:

Anti-Rodent Armored Fiber Optic Cable

Anti-Bending Stainless Steel Fiber Optic Cable

G657A2 LSZH Fiber Optic Cable

Product Description

Stainless Steel Tube Armored Fiber Optic Cable

High-performance flexible armored fiber optic cable with stainless steel protection, designed for demanding industrial environments.

Specification	Details
Type	Outdoor/Indoor Fiber Optic Cable
Place of Origin	Guangdong, China
Brand	OEM
Number of Conductors	≥ 1
Product Name	Armored Fiber Optic Cable
Application	Chemical plant, oil refinery, forest, subway
Fiber Types	9/125um, 62.5/125um, 50/125um
Cable OD	3.0mm/4.0mm/5.0mm/6.0mm/7.0mm/8.0mm
HS CODE	8544700000
Armored Protection	Spiral steel armored
Mode	Singlemode, MultiMode
SM/MM Standards	G.652D, G.657A1 or G.657A2, OM1, OM2, OM3, OM4
Metal Braiding	Stainless steel
Tensile Reinforcement	Kevlar
Temperature Range	-20°C to +75°C
Cable Loss	850nm ≤3.5 db/km; 1300nm ≤1.5 db/km
Tensile Strength	Long Term: 300N; Short Term: 500N
Bending Radius	Dynamic 20D, Static 10D

Product Features

Mini diameter SUS spring tube reinforced ensures excellent crush resistance
Kevlar strengthening provides superior tensile strength
LSZH Outer jacket complies with UL and RoHS standards
Anti-rodent and anti-bending protection
Flexible armored design for easy installation

Applications

Applied to the patch cord of optical terminals, indoor/outdoor FTTH installations, optical distribution networks, and connections between optical cable and communication equipment rooms.

Ideal for chemical plants, oil refineries, forests, subways, and other demanding environments.

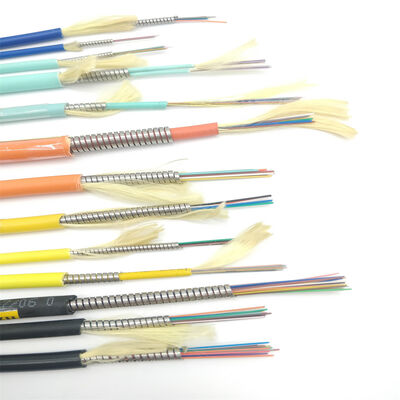

Available Core Configurations

1 Core Armored Fiber Optic Cable

Anti-Rodent, Anti-Bending

2 Core Armored Fiber Optic Cable

Anti-Rodent, Anti-Bending

4 Core Armored Fiber Optic Cable

Anti-Rodent, Anti-Bending

6 Core Armored Fiber Optic Cable

Anti-Rodent, Anti-Bending

12 Core Armored Fiber Optic Cable

Anti-Rodent, Anti-Bending

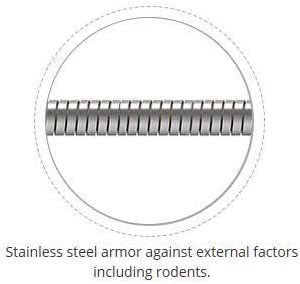

Armored Tube Construction

Stainless steel armored tube provides superior mechanical protection and durability.
