Indoor Outdoor Armored Fiber

7.0mm Diameter Waterproof Armored Fiber Optic Cable with 10 Years Warranty for FTTA Jumper Outdoor Patchcord

All Category

Outdoor Armored Fiber Optic Cable

7.0mm Diameter Waterproof Armored Fiber Optic Cable with 10 Years Warranty for FTTA Jumper Outdoor Patchcord

Brand Name:	HXFiber
Model Number:	HX-Patch Cord-33
MOQ:	10
Price:	CN¥1.73-2.69

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Insertion Loss:

< 0.3 DB

Cable Diameter:

5.0mm, 7.0mm

Return Loss:

> 55 DB

Outer Sheath Material:

PVC, LSZH, PU, PE

Armored Tube:

With Steel Armored

Working Temperature:

-25℃~+70℃

Connector Ferrule:

Zirconia Ceramic

Polish Type:

SMF:UPC-UPC;UPC-APC;APC-UPC;APC-APC; MMF:UPC-UPC

Fiber Mode:

9/125μm

Wavelength:

1310/1550nm

Fiber Count:

Duplex

Operating Temperature:

-40~75°C

Storage Temperature:

-45~85°C

Length:

2/5/10/15/20m/100m Customized Length

Jacket OD:

7.0mm

Highlight:

7.0mm Diameter Armored Fiber Optic Cable

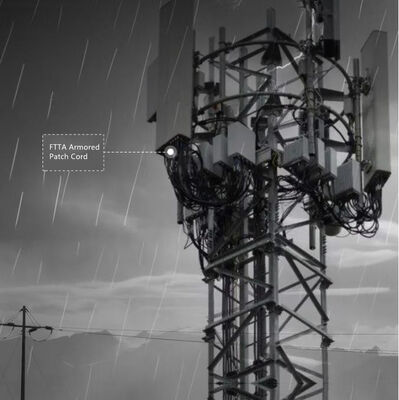

Waterproof FTTA Jumper Cable

10 Years Warranty Outdoor Patchcord

Product Description

200m 2/4 Cores Outdoor Armored Fiber Patch Cord

Technical Specifications

Parameter	Specification	Parameter	Specification

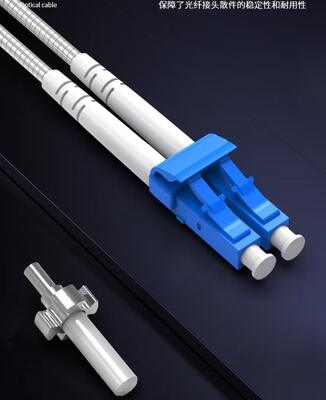

Connector Type	LC to LC	Jacket OD	7.0mm
Fiber Mode	9/125μm	Jacket Color	Black
Polish Type	UPC to UPC	Wavelength	1310/1550nm
Fiber Count	Duplex	Jacket Material	LSZH
Insertion Loss	≤0.3dB	Interchangeability	≤0.2dB
Return Loss	≥55dB	Vibration	≤0.2dB
Operating Temperature	-40°C to 75°C	Storage Temperature	-45°C to 85°C
Length	2/5/10/15/20m/100m (customized)	Delivery Date	3-7 days (based on quantity)

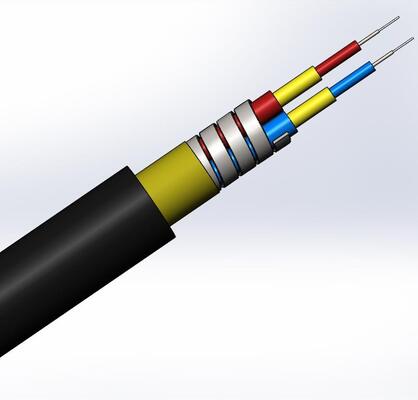

7.0mm Armored Fiber Patch Cord Structure

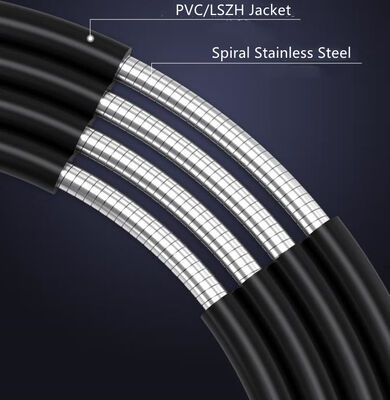

Construction: Tight-buffered fiber + Steel Armored + Aramid yarn + Jacket

Available Fiber Types

Single Mode: G652D, G657A1, G657A2

Multi Mode: 62.5/125, 50/125 (OM3, OM4)

Also available with 0.9mm PVC tight-buffered fiber

Color Coding

Single Mode: White or Yellow

Multi Mode: Blue or Orange

Key Features & Benefits

Suitable for telecommunications networks

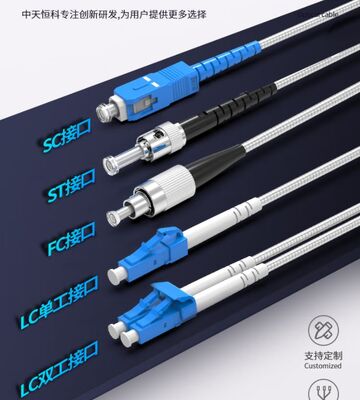

Available connector types: FC, SC, ST, MU, LC, MTRJ, MPO, SMA, E2000, DIN

High durability and reliability

Low insertion loss and high return loss

Single mode/multi mode, PC/UPC/APC patch cords and pigtails available

Available in single core, 2 cores, 4 cores, 6 cores, 8 cores, 12 cores and multi-core configurations

Product Images
