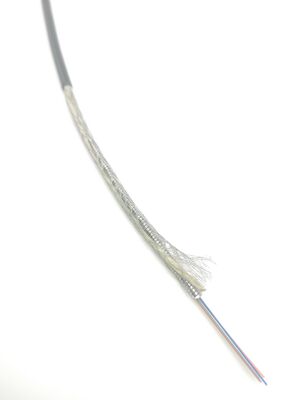

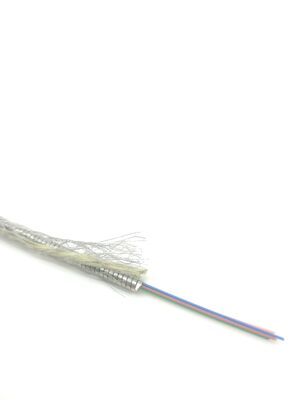

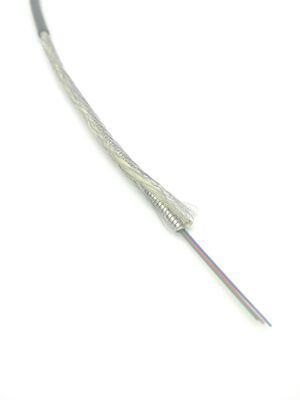

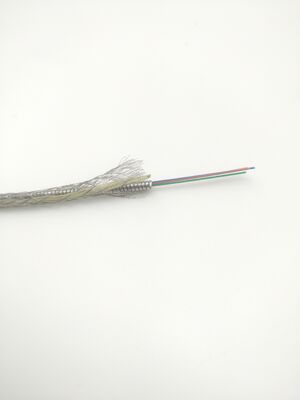

LSZH Jacket 5.0mm 2 Cores Armored Fiber Optic Cable for Indoor Outdoor Use

All Category

Outdoor Armored Fiber Optic Cable

LSZH Jacket 5.0mm 2 Cores Armored Fiber Optic Cable for Indoor Outdoor Use

Brand Name:	HXFiber
Model Number:	HX-GQJG-22
MOQ:	1
Price:	CN¥343.91-412.82

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Number Of Conductors:

Number Of Cores:

2 Core

Fiber Type:

OM2 / OM3 / OM4 / G652D / G657A1 / G657A2

Armored Tube Material:

Stainless Steel

Outer Sheath Material:

PVC,LSZH,PU,PE

Working Temperature:

-20℃~+70℃

Dynamic Bending Radius:

Static Bending Radius:

Cable OD:

3.0mm/4.0mm/5.0mm/6.0mm/7.0mm/8.0mm

Cable Loss:

850nm ≦3.5 ; 1300nm ≦1.5

Long Term Tensile:

Short Term Tensile:

Fiber Mode:

Singlemode, MultiMode

Fiber Diameter:

9/125um, 62.5/125um, 50/125um

Armored Protection:

Spiral Steel Armored

Highlight:

LSZH Jacket Armored Fiber Optic Cable

5.0mm Armored Fiber Cable

2 Cores Armored Optical Cable

Product Description

Double Armored Fiber Optic Cable

High-performance outdoor/indoor armored fiber optic cable with LSZH jacket, available in singlemode and multimode configurations for various networking applications.

Specification	Details
Type	Outdoor/Indoor Fiber Optic Cable
Place of Origin	Guangdong CHINA
Brand	OEM
Number of Conductors	≥ 1
Product Name	Double Armored Fiber Optic Cable
Application	FTTH, LAN Network, Patch Cord
Fiber	9/125um, 62.5/125um, 50/125um
Cable OD	3.0mm/4.0mm/5.0mm/6.0mm/7.0mm/8.0mm
HS CODE	8544700000
Armored	Spiral steel armored protected
Mode	Singlemode, MultiMode
SM / MM	G.652D, G.657A1 or G.657A2, OM1, OM2, OM3, OM4
Metal Braiding	Stainless steel
Tensile	Kevlar
Temperature	-20°C to +75°C
Cable Loss	850nm ≤3.5 db/km; 1300nm ≤1.5 db/km
Tensile Strength	Long Term: 300N; Short Term: 500N
Bending Radius	Dynamic 20D, Static 10D

Technical Specifications

Fiber Types

G.652D, G.657A1 or G.657A2 single mode fiber and OM1, OM2, OM3, OM4 multimode fiber.

Key Features

Mini diameter SUS spring tube reinforced ensures excellent crush resistance
Kevlar strengthening provides superior tensile strength
LSZH Outer jacket complies with UL and RoHS standards

Applications

Patch cord for optical terminal connections
Indoor and outdoor FTTH installations
Optical distribution networks
Connections between optical cable and communication equipment rooms

Available Core Configurations

1 Core Armored Fiber Optic Cable

Anti-Rodent, Anti-Bending design for single fiber applications.

2 Cores Armored Fiber Optic Cable

Anti-Rodent, Anti-Bending design for dual fiber applications.

4 Cores Armored Fiber Optic Cable

Anti-Rodent, Anti-Bending design for quad fiber applications.

6 Cores Armored Fiber Optic Cable

Anti-Rodent, Anti-Bending design for six fiber applications.

12 Cores Armored Fiber Optic Cable

Anti-Rodent, Anti-Bending design for twelve fiber applications.

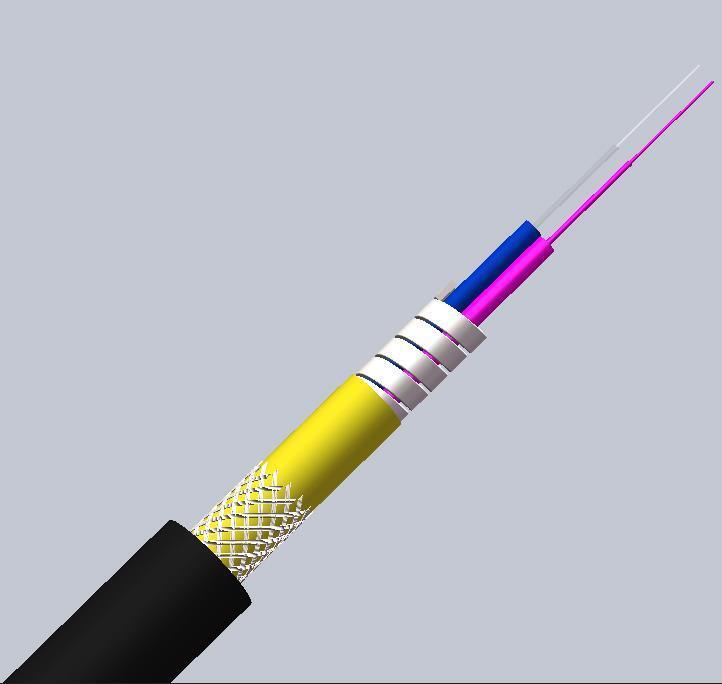

Armored Tube Construction

Stainless steel armored tube provides superior protection and durability.
