Indoor Outdoor Armored Fiber

High-Quality Spiral Steel Armored LSZH PVC Jacket Indoor Fiber Optic Cable with Custom Length

All Category

Outdoor Armored Fiber Optic Cable

High-Quality Spiral Steel Armored LSZH PVC Jacket Indoor Fiber Optic Cable with Custom Length

Brand Name:	HX Fiber
Model Number:	HX-LXK2
MOQ:	1000
Price:	€0.1739-0.226

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE/ROHS/ISO9001

Fiber Core Diameter:

9±0.4 (Single Mode), 50±2.5 (Multi Mode), 62.5±2.5 (Multi Mode)

Cladding Diameter:

125±1

Cable Loss:

0.4bd/km@1310nm, 0.3bd/km@1550nm (Single Mode); 3.5bd/km@850nm, 1.5bd/km@1300nm (Multi Mode)

Outer Diameter:

2.9±0.1

Number Of Cores:

2Core (multi Core Customizable)

Cable Weight:

Temperature Range:

-20 ℃ - +70 ℃

Bending Radius:

Dynamic 20x OD/Static 10x OD

Compressive Strength:

Long Term 1000/Short Term 3000

Tensile Strength:

Dynamic 300/Static 600

Sheath Material:

PVC, LSZH, PE, PU, PTEE, SGS, UL

Number Of Conductors:

Jacket Material:

PVC LSZH LSOH PE HDPE

Transmission Distance:

Support 2km No Attenuation

European Standard:

Inner Dia 50um/Outer Dia 125um

Highlight:

Spiral Steel Armored Fiber Optic Cable

LSZH PVC Jacket Armored Fiber Cable

Custom Length Indoor Fiber Cable

Product Description

High-Quality SM MM LSZH PVC Indoor Spiral Steel Armoured Tactical Field Fiber Optical Cable

Product Specifications

Parameter	Single Mode	Multi Mode 50μm	Multi Mode 62.5μm
Fiber Core Diameter	9±0.4 μm	50±2.5 μm	62.5±2.5 μm
Cladding Diameter	125±1 μm	125±1 μm	125±1 μm
Fiber Optic Cable Loss	0.4 dB/km @1310nm 0.3 dB/km @1550nm	3.5 dB/km @850nm 1.5 dB/km @1300nm	3.5 dB/km @850nm 1.5 dB/km @1300nm
Outer Diameter	2.9±0.1 mm
Number of Fiber Cores	2 Core (multi core customizable)
Cable Weight	~15 kg/km
Temperature Performance	-20℃ to +70℃
Bending Radius	Dynamic: 20x OD / Static: 10x OD
Compressive Strength	Long term: 1000 N / Short term: 3000 N
Tensile Strength	Dynamic: 300 N / Static: 600 N
Sheath Material	PVC, LSZH, PE, PU, PTFE, SGS, UL
Sheath Color	Multiple colors available

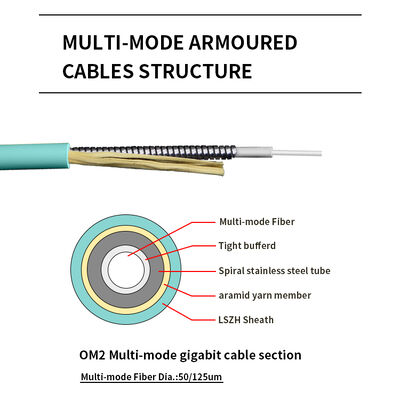

Indoor Spiral Armoured Multi-Mode Gigabit Fiber Cable

Customization supporting for specialized applications

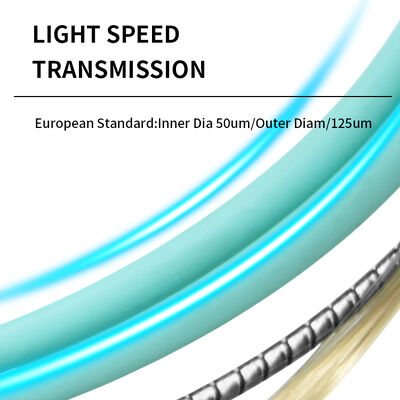

Light Speed Transmission

European Standard: Inner Diameter 50μm / Outer Diameter 125μm

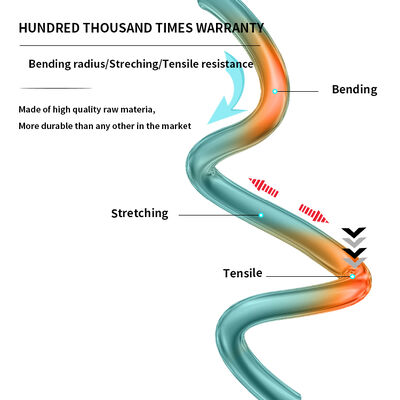

Hundred Thousand Times Warranty

Superior bending radius, stretching, and tensile resistance. Made of high-quality raw materials, more durable than any other in the market.

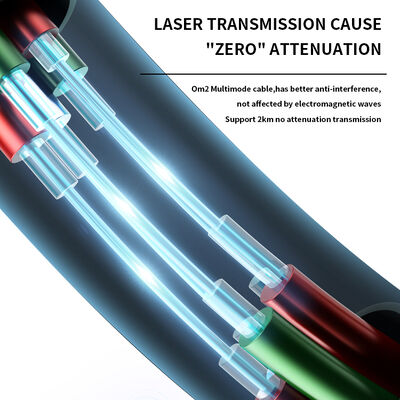

Laser Transmission with Zero Attenuation

OM2 Multimode cable with better anti-interference, not affected by electromagnetic waves. Supports 2km transmission with no attenuation.

Excellent Environmental Raw Materials

Manufactured using premium materials for optimal performance and durability.

Product Design & Customization

Accept customization - Put your good ideas into reality. Click "Contact Us" for custom solutions.

Company Profile

Dongguan HX Fiber Technology Co., Ltd. is located in Dongguan, China. We are a direct manufacturer with more than 12 years of experience in producing Armored Optical Cables, Indoor/Outdoor Fiber Optic Cable, FTTH Drop Cable, Connector, Patch Cords, Pigtail, Adapter, PLC Splitter, and MPO/MTP Solutions.

Certifications: ISO 9001:2015, UL, RoHS. We own 5 lines for cable production and 87 armoring machines for armored cables.

Notable customers: Amphenol Industrial, Rosenberger, YOFC, FiberHome, Foxconn, ZTT. Products shipped to USA, Canada, Australia, Belgium, Britain, France, Spain, Italy, Holland, Portugal, and more. OEM and LOGO customization accepted.

Service & Production Capacity

Foreign Exhibitions

Cooperative Brands & Certifications

Payment & Transportation Methods

Frequently Asked Questions

1. Are you the real manufacturer?

Yes. We are the real manufacturer with more than 20 years' history. Welcome to visit us!

2. What is your minimum quantity?

1KM. We support new projects for our customers, and trial orders are available.

3. Can I get a sample?

Yes, we provide FREE samples and you just need to pay for express freight.

4. Can you customize the product?

Yes, we can customize according to your requirements (logo, package, printing, and more).

5. How long will it take you to deliver?

Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory with 18 years of history, and products are exported to over 25 countries.

7. How about your price?

At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?

L/C, T/T, Western Union, and Paypal are acceptable.

9. What mode of transportation do you support?

Ocean transportation, air transport, Express, and more.
