Indoor Outdoor Armored Fiber

Custom Length Dustproof Spiral Armored Fiber Optic Cable for High Speed Transmission

All Category

Outdoor Armored Fiber Optic Cable

Custom Length Dustproof Spiral Armored Fiber Optic Cable for High Speed Transmission

Brand Name:	HXCOWO
Model Number:	HX-LXK4
MOQ:	1000

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Fiber Core Diameter:

9±0.4, 50±2.5, 62.5±2.5

Cladding Diameter:

125±1

Fiber Cable Loss:

0.4bd/km@1310nm, 0.3bd/km@1550nm, 3.5bd/km@850nm, 1.5bd/km@1300nm

Outer Diameter:

2.9±0.1

Fiber Cores:

2-288Core

Cable Weight:

Temperature Performance:

-20 ℃ - +70 ℃

Bending Radius:

Dynamic 20x OD/Static 10x OD

Compressive Strength:

Long Term 1000/Short Term 3000

Tensile Strength:

Dynamic 300/Static 600

Sheath Material:

PVC, LSZH, PE, PU, PTEE, SGS, UL

Fiber Type:

G652D/G657A1/G657A2/OM1/OM2/OM3/OM4

Number Of Conductors:

Jacket Material:

PVC LSZH LSOH PE HDPE

Fiber Count:

2-288 Cores

Highlight:

Custom Length Armored Fiber Optic Cable

Dustproof Spiral Armored Optical Cable

High Speed Transmission Indoor Outdoor Fiber Cable

Product Description

HXCOWO Indoor Outdoor Single Mode 9/125 SM MM OM1 OM2 OM3 Multi Mode Spiral Armored Fiber Cable

Product Parameters

Parameter	Single Mode	Multi Mode (50μm)	Multi Mode (62.5μm)
Fiber Core Diameter	9±0.4μm	50±2.5μm	62.5±2.5μm
Cladding Diameter	125±1μm	125±1μm	125±1μm
Fiber Optic Cable Loss	0.4dB/km @1310nm 0.3dB/km @1550nm	3.5dB/km @850nm 1.5dB/km @1300nm	3.5dB/km @850nm 1.5dB/km @1300nm

Outer Diameter: 2.9±0.1mm

Number of Fiber Cores: 2-288 Core

Fiber Optic Cable Weight: ~15kg/km

Temperature Performance: -20℃ to +70℃

Bending Radius: Dynamic 20x OD / Static 10x OD

Compressive Strength: Long term 1000N / Short term 3000N

Tensile Strength: Dynamic 300N / Static 600N

Sheath Material: PVC, LSZH, PE, PU, PTFE, SGS, UL

Sheath Color: Multiple colors available

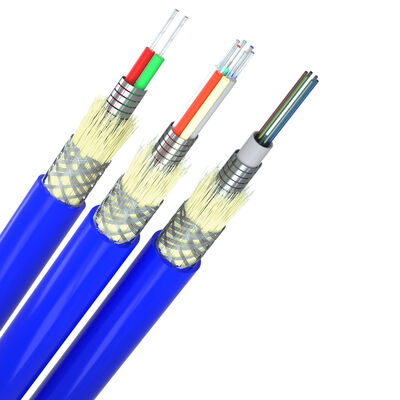

Spiral Steel Armored Fiber Optic Cable

Tensile anti-interference capability
Excellent bending performance
High speed and stable transmission

Six Core Advantages

High quality fiber core
Long transmission distance
Low anti-interference loss
Lightning transmission capability
Waterproof and wear-resistant
Flexible bending performance

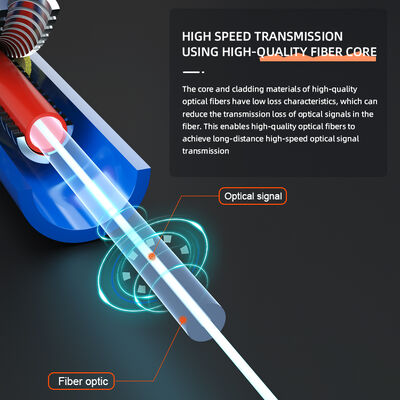

High Speed Transmission

Using high-quality fiber core materials with low loss characteristics to reduce optical signal transmission loss, enabling long-distance high-speed optical signal transmission.

Strong Tensile/Compression Resistance/Protective Properties

Spiral armored metal layer provides additional strength and rigidity, allowing the optical cable to withstand greater tension and pull force while effectively protecting against physical damage, pressure, impact, and harsh environmental conditions. Ideal for long-distance transmission and difficult installation scenarios.

Flexible/Strong Bending Performance/Easy to Install

Despite the armor layer, our fiber cables maintain excellent flexibility and bending performance with various bending radii, making installation and maintenance significantly easier.

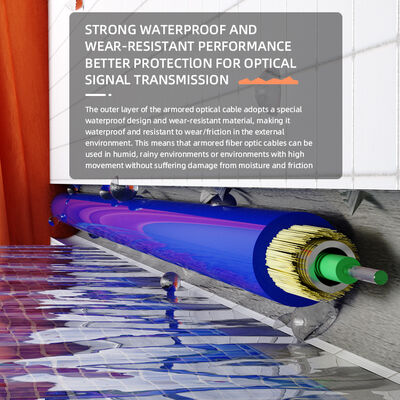

Strong Waterproof and Wear-resistant Performance

Special waterproof design and wear-resistant materials provide superior protection against moisture, friction, and environmental wear. Suitable for humid, rainy environments and high-movement applications without damage from moisture or friction.

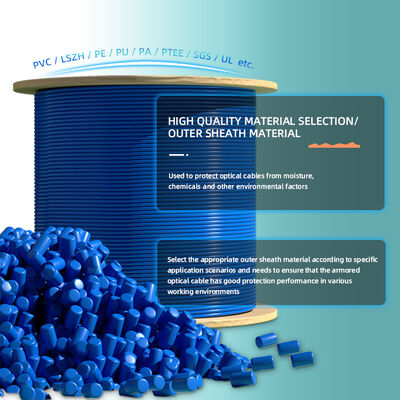

High Quality Material Selection/Outer Sheath Material

Carefully selected outer sheath materials protect optical cables from moisture, chemicals, and environmental factors. We choose appropriate materials for specific application scenarios to ensure optimal protection in various working environments.

Structure Introduction

Our indoor armored optical cables feature structural designs that protect the optical fiber core from external physical damage while providing excellent environmental adaptability and transmission performance. We support customization of size, core number, and structural requirements.

Product Design

We accept customization - put your good ideas into reality. Click "Contact Us" to discuss your specific requirements.

Company Profile

Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. The company was founded in 2010 with its own brand HXCOWO, dedicated to providing optical fiber cabling system solutions for data centers, enterprise networks, and operators.

With over 10 years' development, we operate with a registered capital of USD 5 million, a 6,000 sqm workplace, 7 production assemblies, and about 70 skilled workers. Our monthly output reaches up to 1500km of fiber optic cables. We believe "Quality is our culture & Long term business is our goal."

We maintain an excellent management system and passed ISO9001:2015 certification in 2021. Our products are exported to Europe, America, Asia, South America, Africa, and other regions worldwide.

Service & Production Capacity

Foreign Exhibitions

Cooperative Brand & Certification

Payment & Transportation Method

Frequently Asked Questions

1. Are you the real manufacturer?

Yes. We are the real manufacturer with more than 20 years' history, welcome to visit us!

2. What is your minimum quantity?

1KM. We support new projects of our customers, trial order is available.

3. Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?

Yes, we can customize according to your requirements (logo, package, printing and so on).

5. How long will it take you to deliver?

Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?

At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?

L/C, T/T, Western Union and Paypal are acceptable.

9. What mode of transportation do you support?

Ocean transportation, air transport, Express, etc.
