Indoor Outdoor Armored Fiber

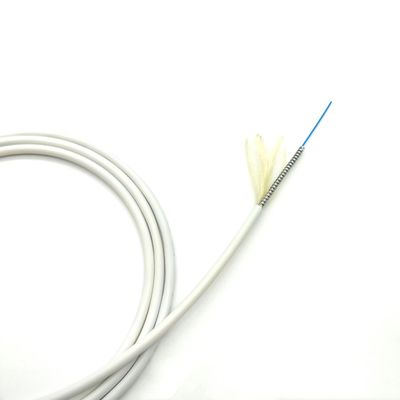

White 1 Core Indoor Outdoor Armored Fiber 1km 3.0mm Stainless Steel G.657A2

All Category

Outdoor Armored Fiber Optic Cable

White 1 Core Indoor Outdoor Armored Fiber 1km 3.0mm Stainless Steel G.657A2

Brand Name:	HX Fiber
Model Number:	HX-GQJG-14 fiber optic cable armored
MOQ:	1000 meters
Price:	Negotiable

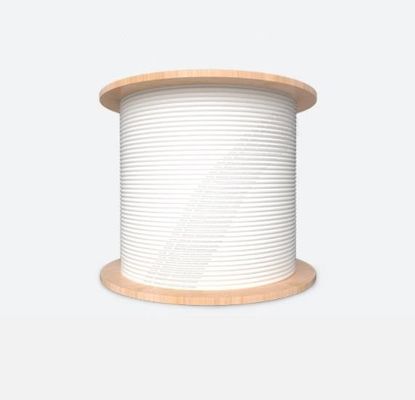

Packaging Details:	1KM/drum 1 core fiber optic cable or 2KM/drum packaged with wooden

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CPR/ CE/ ROHS/ ISO9001

Type:

Armored Fiber Optic Cable

Number Of Conductors:

Warranty (Year):

5 Years

Application:

Anti-Mouse Bite. FTTH FTTB FTTX Network

Number Of Cores:

1-12 Core

Fiber Type:

G652D / G657A1 / G657A2 / OM2 / OM3 / OM4

Material Of Armored Tube:

Flexible Stainless Steel

Material Of Outer Sheath:

PVC,LSZH,PU,PE

Working Temperature(℃):

-20℃~+70℃

Bending Radius(Dynamic):

Bending Radius(Static):

Port:

Shenzhen,guangzhou,shanghai Port

Supply Ability:

15000 Kilometer/Kilometers per Month

Highlight:

White Indoor Outdoor Armored Fiber

G.657A2 Indoor Outdoor Armored Fiber

1km Indoor Outdoor Armored Fiber

Product Description

1 Core Fiber Optical Cable 1km 3.0mm White Stainless Steel G.657A2 for Working Temperature

Products Description

Why Choose Us

Custom Service:

1,12 Years Factory OEM Experience

2,MOQ:1KM , Free Sample .

3,Cooperated with Rosenberger, Amphenol, YOFC, ZTT , FiberHome ...

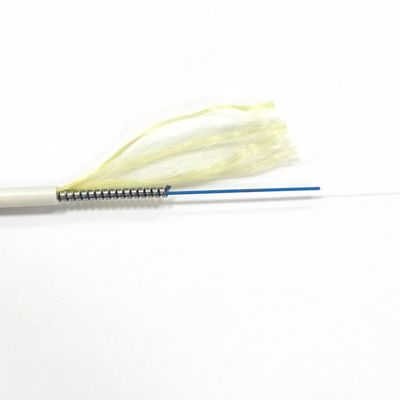

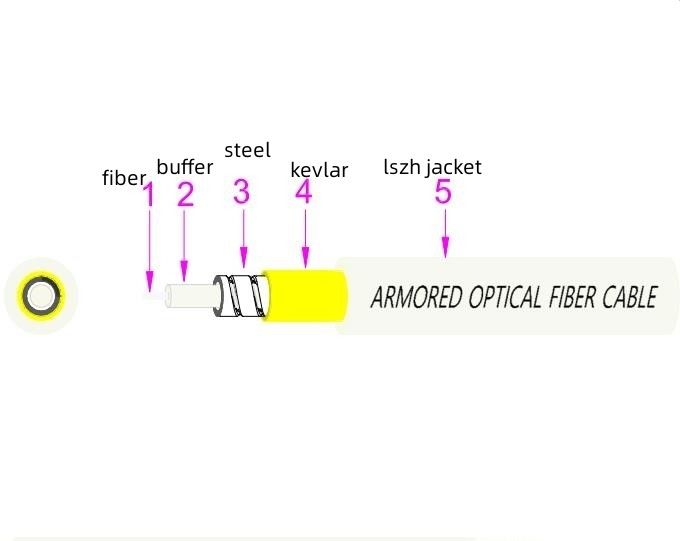

Armored fiber cable

Fiber Type:

G.652D, G.657A1 or G.657A2 single mode fiber and OM1, OM2, OM3, OM4 mutimode fiber.

Features:

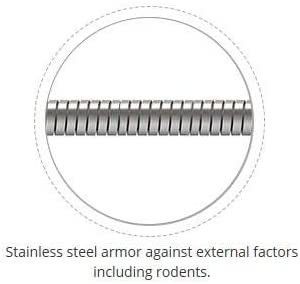

* Mini diameter SUS spring tube reinforced ensures good crush resistance.
* Kevlar strengthened provide good tensile strength.
* Outer jacket complies with UL, RoHS

Applications:
* suitable for indoor and outdoor wall, roof, ,FTTH and optical distribution

* indoor and outdoor horizontal wiring, vertical wiring in buildings, LAN network

Item	Value
Type	Outdoor/Indoor Fiber Optic Cable
Place of Origin	Guangdong CHINA
Brand	OEM
Number of Conductors	1
Fiber	G.652D, G.657A1 or G.657A2 single mode fiber
Cable OD.	3.0mm
HS CODE	8544700000
Armored	Spiral steel armored protected
Tensile	Kevlar
Temperature(°C)	-20~+75°C
Cable loss(db/km)	1310nm ≦0.4 ; 1550nm ≦0.3
Tensile(N)	Long Term: 200N ; Short Term : 400N
Bending Radius(mm)	Dynamic 20D, Static 10D
Jacket	LSZH / PVC

Company View

Exhibitions

Cooperation

Certifications

Production Line

Packaging&Shipping

Tags:
