Indoor Outdoor Armored Fiber

Telecom Communication Armored Fiber Cable 2-288 Cores Single Core Spiral Steel Tube

All Category

Outdoor Armored Fiber Optic Cable

Telecom Communication Armored Fiber Cable 2-288 Cores Single Core Spiral Steel Tube

Name: Telecom Communication Armored Fiber Cable 2-288 Cores Single Core Spiral Steel Tube
Brand: HXCOWO
SKU: HX-LXK4
Rating: 4.9 (112 reviews)

Brand Name:	HXCOWO
Model Number:	HX-LXK4
MOQ:	1000 meters
Price:	Negotiable
Packaging Details:	Wooden shaft+Export cardboard box

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

RoHS

Type:

Spiral Armored Optical Cable, Fiber Optic Cable

Number Of Conductors:

≥ 10

Product Name:

Spiral Armored Optical Cable

Application:

Telecom Comunication

Color:

Customized Color

Jacket:

PVC LSZH LSOH PE HDPE

Length:

Custom Length

Fiber Type:

G652D/G657A1/G657A2/OM1/OM2/OM3/OM4

Fiber Count:

2-288 Cores

Function:

Dustproof

Port:

Shenzhen

Supply Ability:

1500000 Piece/Pieces per Month

High Light:

Telecom Communication Fiber Cable

288 Cores Armored Fiber Cable

Single Core Armored Fiber Cable

Product Description

Telecom Comunication Fiber Cable with 2-288 Cores and Single Core Spiral Steel Tube

PRODUCT PARAMETERS
Tabulation	Single mode	Multi mode	Multi mode
Fiber core diameter	9±0.4	50±2.5	62.5±2.5
Cladding diameter	125±1	125±1	125±1
Fiber optic cable loss	0.4bd/km@1310nm	3.5bd/km@850nm	3.5bd/km@850nm
Fiber optic cable loss		0.3bd/km@1550nm	1.5bd/km@1300nm	1.5bd/km@1300nm
Outer diameter of fiber optic cable	2.9±0.1
Number of fiber cores	2-288Core
Fiber optic cable weight	~15
Temperature performance	-20 ℃ -+70 ℃
Bending radius	Dynamic 20x OD/Static 10x OD
Compressive strength	Long term 1000/Short term 3000
Tensile strength	Dynamic 300/Static 600
Sheath material	PVC, LSZH, PE, PU, PTEE, SGS, UL
Sheath color	Multiple colors available

PRODUCT DESCRIPTION

SPIRAL STEEL ARMORED FIBER OPTIC CABLE

Tensile anti-interference

Good bending performance

High speed and stable transmission

SIX CORE ADVANTAGES

High quality fiber core

Long transmission distance

Low anti-interference loss

Lightning transmission

Waterproof and wear-resistant

Flexible bending

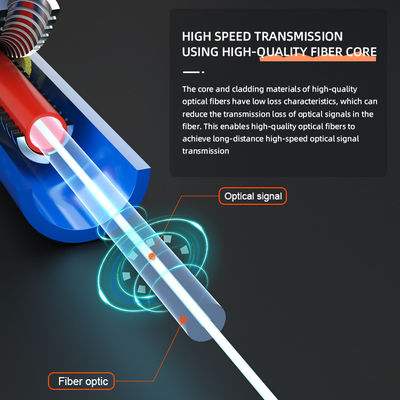

HIGH SPEED TRANSMISSION

USING HIGH-QUALITY FIBER CORE

The core and cladding materials of high-quality optical fibers have low loss characteristics, which can reduce the transmission loss of optical signals in the fiber. This enables high-quality optical fibers to achieve long-distance high-speed optical signal transmission

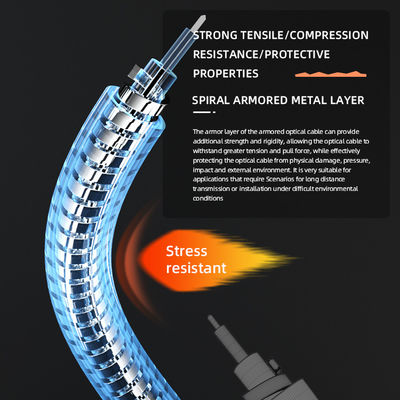

STRONG TENSILE/COMPRESSION RESISTANCE/PROTECTIVE PROPERTIES

SPIRAL ARMORED METAL LAYER

The armor layer of the armored optical cable can provide additional strength and rigidity, allowing the optical cable to withstand greater tension and pull force, while effectively protecting the optical cable from physical damage, pressure, impact and external environment. It is very suitable for applications that require Scenarios for long distance transmission or installation under difficult environmental conditions

FLEXIBLE/STRONG BENDING PERFORMANCE/EASY TO INSTALL

Although armored optical cable has an armor layer, it still has relatively good flexibility and bending performance and can be used in different bending radii, which makes armored optical cable easier to install and maintain

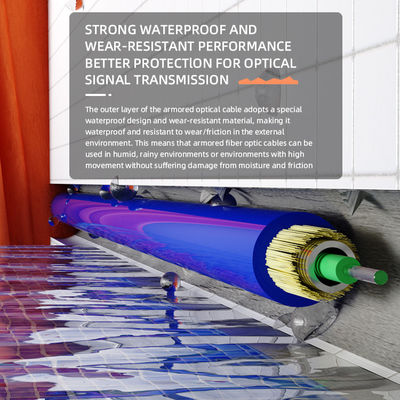

STRONG WATERPROOF AND WEAR-RESISTANT PERFORMANCE

BETTER PROTECTlON FOR OPTICAL SIGNAL TRANSMISSION

The outer layer of the armored optical cable adopts a special waterproof design and wear-resistant material, making it waterproof and resistant to wear/friction in the external environment. This means that armored fiber optic cables can be used in humid, rainy environments or environments with high movement without suffering damage from moisture and friction

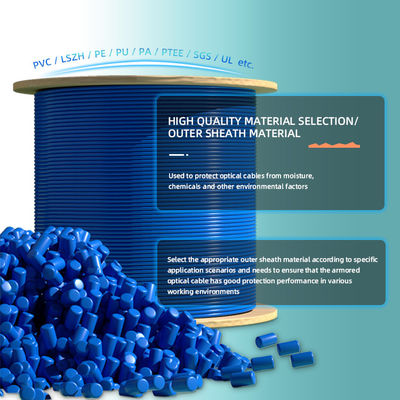

HIGH QUALITY MATERIAL SELECTION/OUTER SHEATH MATERIAL

Used to protect optical cables from moisture, chemicals and other environmental factors

Select the appropriate outer sheath material according to specific application scenarios and needs to ensure that the armored optical cable has good protection performance in various working environments

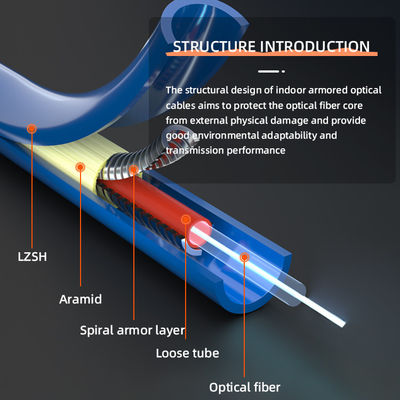

STRUCTURE INTRODUCTION

The structural design of indoor armored optical cables aims to protect the optical fiber core from external physical damage and provide good environmental adaptability and transmission performance

Supports customization of size/core number and structural requirements

PRODUCT DESIGN

Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”

COMPANY PROFILE

Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. The company was founded in 2010 with its own brand HXCOWO, dedicated to providing optical fiber cabling system solutions for data centers, enterprise networks, and operators. Annually, there are a bunch of customers visited us from around the world. With over 10 years' development, a registered capital of USD 5 million, a 6,000 sqm workplace, 7 production assemblies were built and about 70 skilled workers were together. Our monthly output can reach up to 1500km fiber optic cables. With the belief of Quality is our culture & Long term business is our goal. So quality is always put to be a first place in our factory. With an excellent management system, we passed ISO9001:2015 certificate in 2021. on Jule 18, 2021, Alibaba group visited us and verified us. We gained the honorary and passed by world-leading inspection company Intertek group. We develop and produce a variety of fiber optical cables and patch cords. with Models such as FTTH, GYXTW, GYFTY, GYTS, GYTA, GYTA53, GYTS53, ADSS, GYTC8S etc. There are many Chinese companies and trading companies purchase fiber cables from us and resale it to the worldwide. Our products are exported to the Europe and America, Asia, South America, Africa etc. Welcome to visit our factory !

SERVICE & PRODUCTION CAPACITY

FOREIGN EXHIBITIONS

COOPERATIVE BRAND & CERTIFICATION

PAYMENT & TRANSPORTATION METHOD

FAQ

1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
