Brand Name: | HXCOWO |
Model Number: | HX-LXK4 |
MOQ: | 1000 meters |
Price: | Negotiable |
Packaging Details: | Wooden shaft+Export cardboard box |

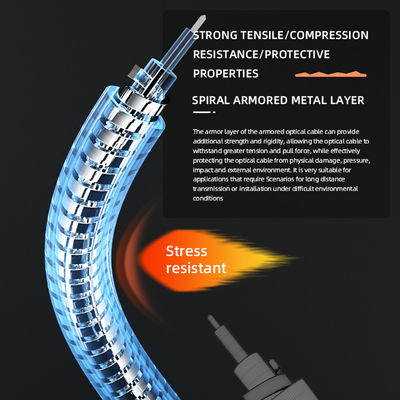

Customized Color HXCOWO Customize Outdoor Direct Burial Steel Weaving Spiral Steel Armored Fiber Optic Cable
PRODUCT PARAMETERS
|
|
|
|
|||
Tabulation
|
Single mode
|
Multi mode
|
Multi mode
|
|||
Fiber core diameter
|
9±0.4
|
50±2.5
|
62.5±2.5
|
|||
Cladding diameter
|
125±1
|
125±1
|
125±1
|
|||
Fiber optic cable loss
|
0.4bd/km@1310nm
|
3.5bd/km@850nm
|
3.5bd/km@850nm
|
|||
|
0.3bd/km@1550nm
|
1.5bd/km@1300nm
|
1.5bd/km@1300nm
|
|||
Outer diameter of fiber optic cable
|
2.9±0.1
|
|
|
|||
Number of fiber cores
|
2-288Core
|
|
|
|||
Fiber optic cable weight
|
~15
|
|
|
|||
Temperature performance
|
-20 ℃ -+70 ℃
|
|
|
|||
Bending radius
|
Dynamic 20x OD/Static 10x OD
|
|
|
|||
Compressive strength
|
Long term 1000/Short term 3000
|
|
|
|||
Tensile strength
|
Dynamic 300/Static 600
|
|
|
|||
Sheath material
|
PVC, LSZH, PE, PU, PTEE, SGS, UL
|
|
|
|||
Sheath color
|
Multiple colors available
|
|
|
