Outdoor Armored Fiber Optic Cable GYTA/GYTS with 2-288 Cores G652D Fiber Type and Custom Length
  • name
  • name
  • name
  • name
  • name
  • name

Outdoor Armored Fiber Optic Cable GYTA/GYTS with 2-288 Cores G652D Fiber Type and Custom Length

Brand Name: HX
Model Number: HX-GL1
MOQ: 1
Price: $0.25-0.45
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE/ROHS/ISO9001
Fiber Quantity:
2-288 Cores
Fiber Type:
SM/MM/OM3
Jacket Material:
PE
Cable Diameter:
9.2-20.0 Mm
Cable Weight:
85-300 Kg/Km
Tensile Force Long-Term:
600-1000 N/100mm
Tensile Force Short-Term:
1500-3000 N/100mm
Flattening Force Long-Term:
300 N/100mm
Flattening Force Short-Term:
1000 N/100mm
Temperature Range:
-40 To +60 ℃
Static Bending Radius:
10x Cable Diameter
Dynamic Bending Radius:
20x Cable Diameter
Maximum Fibers Per Tube:
6-12
Loose Tube Unit Number:
5-24
Fiber Standard:
G.652D, G.651, G.653, G.654, G.655
Highlight:

2-288 Cores Outdoor Armored Fiber Optic Cable

,

G652D Fiber Type GYTA/GYTS Fiber Optic Cable

,

Custom Length Armoured Optical Fiber Cable

Product Description

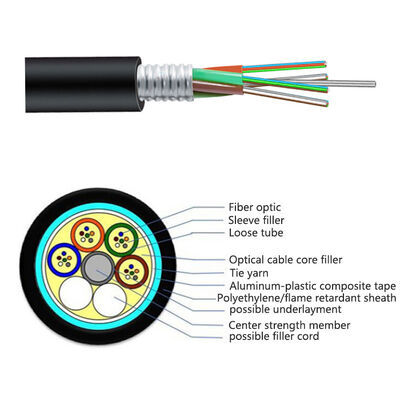

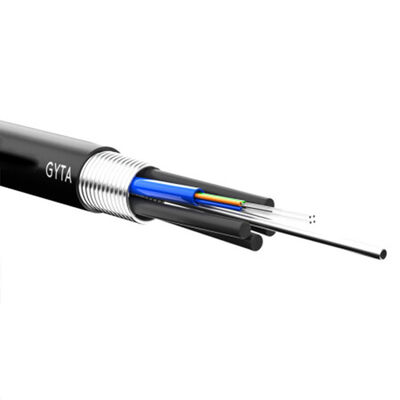

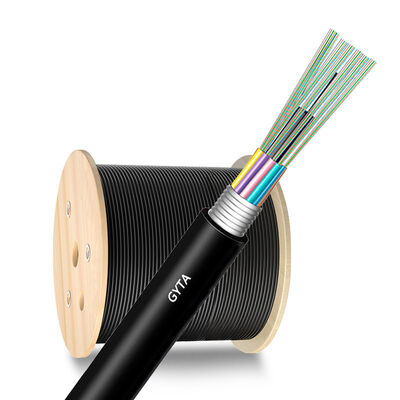

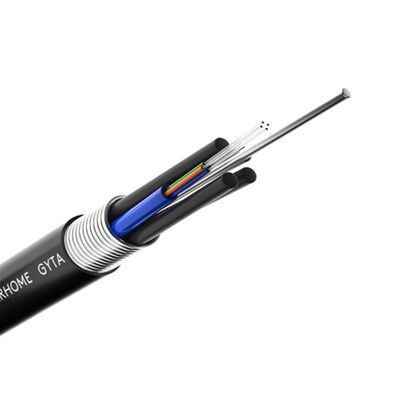

Outdoor Armored Fiber Optic Cable GYTA/GYTS
Available in 2, 4, 6, 8, 24, 32, 48, 84, 96, 144, 288 cores with single/multi-mode G652D optical fiber
Technical Specifications
Fiber Optic Cable Configuration
Fiber Optic Cable Model Fiber Quantity Optical Cable Core Unit Number Maximum Fibers In Loose Tube
GYTA-2∽302∽3056
GYTA-32∽3632∽3666
GYTA-38∽6038∽60512
GYTA-62∽7262∽72612
GYTA-74∽9674∽96812
GYTA-98∽12098∽1201012
GYTA-122∽144122∽1441212
GYTA-146∽216146∽2161812
GYTA-218∽288218∽2882412
Physical Properties
Optical Cable Diameter (mm) Optical Cable Weight (Kg/Km) Allowable Tensile Force Long-Term/Short-Term (N/100mm) Allowable Flattening Force Long/Short Term (N/100mm)
9.285600/1500300/1000
10.2107600/1500300/1000
10.4110600/1500300/1000
11.4130600/1500300/1000
13.6165600/1500300/1000
14.8195600/2000300/1000
16.4236600/2500300/1000
16.4232600/2500300/1000
20.03001000/3000300/1000
Environmental Specifications
Operating Temperature Range: -40°C to +60°C
Minimum Bending Radius:
  • Static: 10 times the fiber optic cable diameter
  • Dynamic: 20 times the fiber optic cable diameter
Note: The standard loose-tube stranded light armored (GYTA) optical cable complies with YD/T901-2001 and IEC60794-1 standards. This product is primarily used for long-distance communication and inter-office communication pipelines and overhead laying. Fiber optic cables with different core counts and lengths can be provided according to customer requirements.
Fiber Standards Comparison
Optical Fiber Type Multi Mode G.651 A1a:50/125 Gradient Refractive Index
Single Mode G.652 (A,B,C,D) B1.1 Conventional
G.653 B2 zero-dispersion shift
G.654 B1.2 cut-off is long shifted
G.655 B4 non-zero dispersion shift
Product Overview
Outdoor Armored Fiber Optic Cable GYTA/GYTS with 2-288 Cores G652D Fiber Type and Custom Length 0
Applications
  • Outdoor distribution networks
  • Suitable for aerial and pipeline laying methods
  • Long distance and local area network communication
Key Characteristics
  • Steel wire strength with filler protection
  • Tube fiber with steel tape armor
  • Excellent ultraviolet radiation resistance
  • Superior moisture resistance properties
Product Design & Customization
Outdoor Armored Fiber Optic Cable GYTA/GYTS with 2-288 Cores G652D Fiber Type and Custom Length 1
We accept customization requests. Put your innovative ideas into reality by contacting our team.
Frequently Asked Questions
Are you the real manufacturer?
Yes. We are a direct manufacturer with more than 12 years of experience, welcome to visit us!
What is your minimum quantity?
1KM. We support new projects and trial orders are available.
Can I get a sample?
Yes, we provide FREE samples - you only need to pay for express freight.
Can you customize the product?
Yes, we offer complete customization including logo, packaging, and printing.
How long will it take you to deliver?
Our standard delivery timeframe is 15 to 20 days.
How about your price?
At the same price, our quality is superior; at the same quality, our pricing is more competitive.
What about Payment?
We accept L/C, T/T, Western Union and Paypal.
What mode of transportation do you support?
Ocean transportation, air transport, and express delivery services.
Tags:

armoured outdoor cable

armored optical cable

armored multimode fiber optic cable
