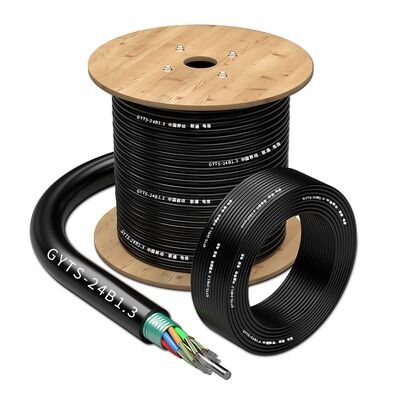

Outdoor Armored Fiber Optic Cable

GYTS Outdoor Armored Fiber Optic Cable with G652D Fiber and Multi-Loose Tube Structure in Custom Length

All Category

Outdoor Armored Fiber Optic Cable

GYTS Outdoor Armored Fiber Optic Cable with G652D Fiber and Multi-Loose Tube Structure in Custom Length

Brand Name:	HX
Model Number:	HX-GL2
MOQ:	1 meter
Price:	$0.10-0.40 / meter

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE/ROHS/ISO9001

Number Of Conductors:

Cable Color:

Black

Jacket Material:

PE Jacket

Cable Structure:

Multi-Loose Tube

Fiber Options:

ITU G652D, G657A, OM1, OM2, OM3, OM4

Strength Member:

Central Steel Wire Or Fiberglass Reinforced Plastic (FRP)

Attenuation @850nm:

≤3.0dB/km (50/125 μm), ≤3.3dB/km (62.5/125 μm)

Attenuation @1300nm:

≤1.0dB/km (50/125 μm, 62.5/125 μm)

Attenuation @1310nm:

≤0.36dB/km (G.652), ≤0.40dB/km (G.655)

Attenuation @1550nm:

≤0.22dB/km (G.652), ≤0.23dB/km (G.655)

Bandwidth @850nm:

≥500 MHz*km (50/125 μm), ≥200 MHz*km (62.5/125 μm)

Bandwidth @1300nm:

≥1000 MHz*km (50/125 μm), ≥600 MHz*km (62.5/125 μm)

Numerical Aperture:

0.200±0.015NA (50/125 μm), 0.275±0.015NA (62.5/125 μm)

Cut-off Wavelength:

≤1260nm (G.652), ≤1450nm (G.655)

Operating Temperature:

-40°C To +70°C

Highlight:

G652D Fiber Outdoor Armored Fiber Optic Cable

Multi-Loose Tube Structure GYTS Fiber Optic Cable

Custom Length PE Armoured Fiber Optic Cable

Product Description

GYTS 72B1.3 Outdoor G652D 36B1.3 Overhead Pipeline PE Armoured Fiber Optic Cable

Optical Performance Specifications

Parameter	G.652	G.655	50/125 μm	62.5/125 μm
Attenuation @850nm			≤3.0dB/km	≤3.3dB/km
Attenuation @1300nm			≤1.0dB/km	≤1.0dB/km
Attenuation @1310nm	≤0.36dB/km	≤0.40dB/km
Attenuation @1550nm	≤0.22dB/km	≤0.23 dB/km
Bandwidth @850nm			≥500 MHz*km	≥200 MHz*km
Bandwidth @1300nm			≥1000 MHz*km	≥600 MHz*km
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Optical Fiber Cut-off Wavelength	≤1260nm	≤1450nm

Applications: Pipeline, Overhead

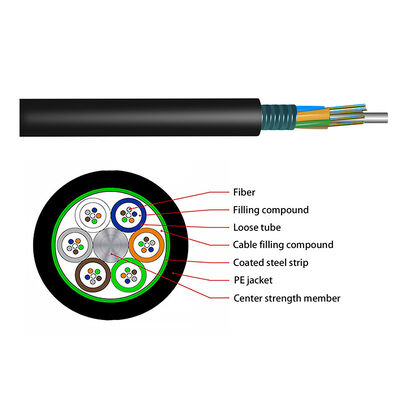

Cable Configuration Details

Fiber Optic Cable	Number of Fibers	Number of Casings	Number of Filling Ropes	Cable Diameter (mm)
GYTA-2~6	2~6	1	4	9.2
GYTA-8~12	8~12	2	3	9.2
GYTA-14~18	14~18	3	2	9.2
GYTA-20~24	20~24	4	1	9.2
GYTA-26~30	26~30	5	0	9.2
GYTA-32~36	32~36	6	0	9.7
GYTA-38~48	38~48	4	1	10.5
GYTA-50~60	50~60	5	0	10.5
GYTA-62~72	62~72	6	0	11.5
GYTA-74~84	74~84	7	1	13.2
GYTA-86~96	86~96	8	0	13.2
GYTA-98~108	98~108	9	1	14.6
GYTA-110~120	110~120	10	0	14.6
GYTA-122~132	122~132	11	1	16.5
GYTA-134~144	134~144	12	0	16.5
GYTA-146~216	146~216	13-18	5-0	16.5
GYTA-288	288	24	0	16.5

Mechanical Specifications

Cable Weight (kg/km)	Allowable Tensile Force Long Term/Short Term (N)	Allowable Flat Pressure Long Term/Short Term (N/100mm)	Bending Radius Static/Dynamic (mm)
80	600/1500	300/1000	10D/20D
80
80
80
80
97	1000/3000
109
109
126
153
153
182
182
221
221
222
283

Storage and use temperature: -40°C to +70°C. (The above parameters are for reference only)

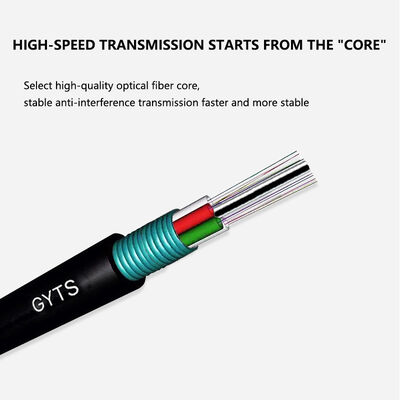

Product Characteristics

Steel jacket offers high tension and crush resistance
Special gel in the tube provides critical protection for the fibers

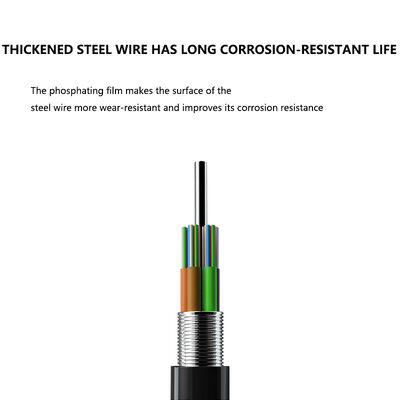

Steel central strength member for enhanced durability

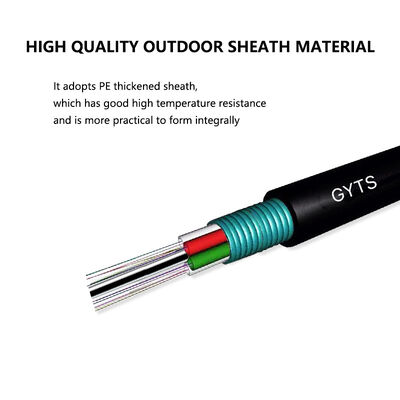

PE jacket prevents UV damage with optional UV-resistant material
Excellent performance under high and low temperatures
Anti-aging properties for long-term reliability

Applications

Conduit and buried installations
Connecting communication equipment
Multi-core wiring systems in data centers

Compliance Standards

GYTS complies with YD/T901-2009 and IEC 60794-1 standards

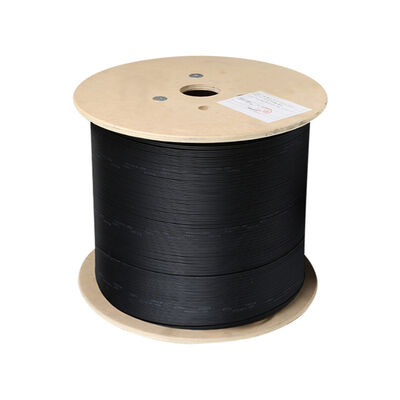

Product Images

Contact Information

Customization Services

Accept customization. Put Your Good Idea into Reality and Click "Contact Us"

Customer Evaluation

Company Profile

Dongguan HX Fiber Technology Co., Ltd. is located in Dongguan, China. We are a direct manufacturer with more than 12 years of experience in producing Armored Optical Cables, Indoor/Outdoor Fiber Optic Cable, FTTH Drop Cable, Connector, Patch Cords, Pigtail, Adapter, PLC Splitter, and MPO/MTP Solutions. Our certifications include ISO 9001:2015, UL, and RoHS. We operate 5 production lines for cable manufacturing and 87 armoring machines for armored cables. Our customers include Amphenol Industrial, Rosenberger, YOFC, FiberHome, Foxconn, and ZTT. We ship to USA, Canada, Australia, Belgium, Britain, France, Spain, Italy, Holland, Portugal, and more. OEM and LOGO customization are accepted.

Service & Production Capacity

International Exhibitions

Cooperative Brands & Certifications

Payment & Transportation Methods

Frequently Asked Questions

1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years' history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new projects of our customers, trial orders are available.

3. Can I get a sample?
Yes, we provide FREE samples and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements (logo, package, printing, etc.).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?
We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C, T/T, Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation, air transport, Express, etc.
