G655 GYTS Outdoor Armored Fiber Optic Cable with ITU G652D and G657A Stranded Loose Tube for High Performance
  • name
  • name
  • name
  • name
  • name
  • name

G655 GYTS Outdoor Armored Fiber Optic Cable with ITU G652D and G657A Stranded Loose Tube for High Performance

Brand Name: HX
Model Number: HX-GL2
MOQ: 1
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE/ROHS/ISO9001
Number Of Conductors:
≥ 10
Cable Color:
Black
Jacket Material:
PE Jacket
Cable Structure:
Multi-Loose Tube
Fiber Options:
ITU G652D, G657A, OM1, OM2, OM3, OM4
Strength Member:
Central Steel Wire Or Fiberglass Reinforced Plastic (FRP)
Attenuation @1310nm:
≤0.36dB/km (G.652), ≤0.40dB/km (G.655)
Attenuation @1550nm:
≤0.22dB/km (G.652), ≤0.23dB/km (G.655)
Bandwidth @850nm:
≥500 MHz*km (50/125 μm), ≥200 MHz*km (62.5/125 μm)
Bandwidth @1300nm:
≥1000 MHz*km (50/125 μm), ≥600 MHz*km (62.5/125 μm)
Numerical Aperture:
0.200±0.015NA (50/125 μm), 0.275±0.015NA (62.5/125 μm)
Cut-off Wavelength:
≤1260nm (G.652), ≤1450nm (G.655)
Cable Diameter:
9.2mm To 16.5mm (varies By Fiber Count)
Allowable Tensile Force:
600/1500 N (long Term/short Term)
Bending Radius:
10D/20D (static/dynamic)
Storage Temperature:
-40°C To +70°C
Highlight:

G655 Outdoor Armored Fiber Optic Cable

,

ITU G652D GYTS Fiber Optic Cable

,

G657A Armored Optical Fiber Cable

Product Description
Hot Sale Outdoor Armored Cable With G655 GYTS Optic Fibre Cable With Stranded Loose Tube
Technical Specifications
G.652 G.655 50/125 μm 62.5/125 μm
Attenuation (+20°C)
@850nm ≤3.0dB/km ≤3.3dB/km
@1300nm ≤1.0dB/km ≤1.0dB/km
@1310nm ≤0.36dB/km ≤0.40dB/km
@1550nm ≤0.22dB/km ≤0.23 dB/km
Bandwidth (A-level) @850nm ≥500 MHz*km ≥200 MHz*km
@1300nm ≥1000 MHz*km ≥600 MHz*km
Numerical aperture 0.200±0.015NA 0.275±0.015NA
Optical fiber cable cut-off wavelength ≤1260nm ≤1450nm
Applicable: pipeline, overhead

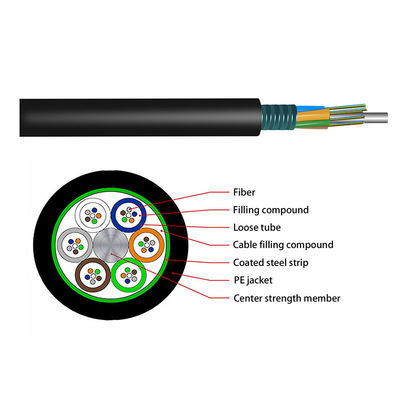

Fiber Optic Cable Configuration
Number of fibers Number of casings Number of filling ropes Fiber optic cable diameter (mm)
2~6 1 4 9.2
8~12 2 3 9.2
14~18 3 2 9.2
20~24 4 1 9.2
26~30 5 0 9.2
32~36 6 0 9.7
38~48 4 1 10.5
50~60 5 0 10.5
62~72 6 0 11.5
74~84 7 1 13.2
86~96 8 0 13.2
98~108 9 1 14.6
110~120 10 0 14.6
122~132 11 1 16.5
134~144 12 0 16.5
146~216 13-18 5-0 16.5
288 24 0 16.5
Mechanical Properties
Fiber Optic Cable Weight (kg/km) Allowable tensile force long term/short term (N) Allowable flat pressure long term/short term (N/100mm) Bending radius static/dynamic (mm)
80 600/1500 300/1000 10D/20D
97 1000/3000
Storage and use temperature: -40°C to +70°C. (The above parameters are for reference only)
Product Characteristics
  • Steel jacket offers high tension and crush resistance
  • Special gel in the tube offers critical protection for the fibers

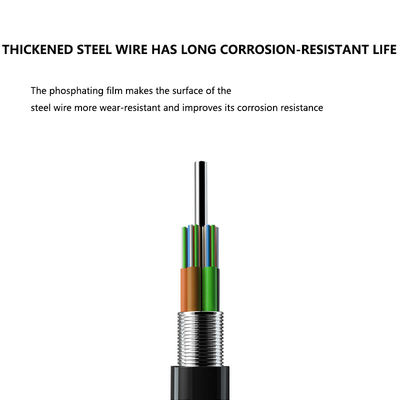

  • With steel central strength member

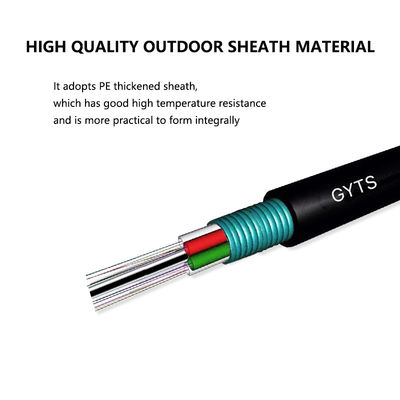

  • PE jacket prevents UV damage (UV-resistant material can be added)
  • Excellent performance under high and low temperatures
  • Anti-aging properties
Applications
  • Conduit/buried installations
  • Connecting communication equipment
  • Multi-core wiring systems in data centers
Standards Compliance
  • GYTS complies with YD/T901-2009 and IEC 60794-1 standards

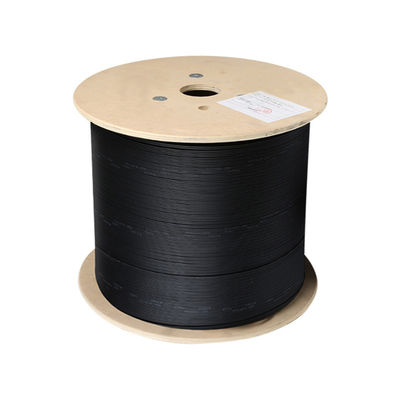

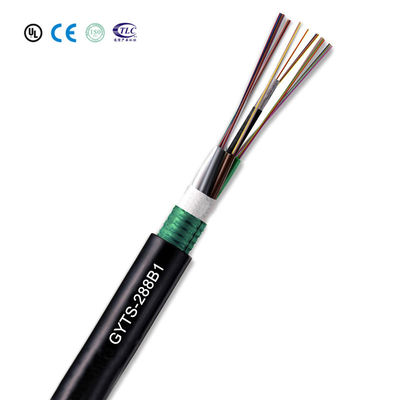

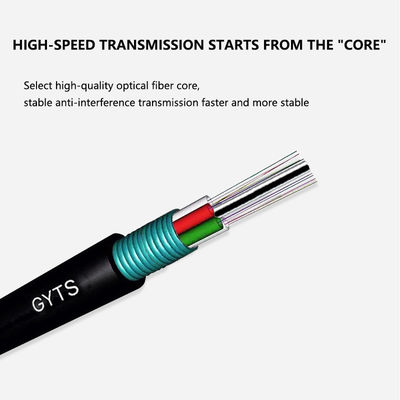

Product Images
G655 GYTS Outdoor Armored Fiber Optic Cable with ITU G652D and G657A Stranded Loose Tube for High Performance 0 G655 GYTS Outdoor Armored Fiber Optic Cable with ITU G652D and G657A Stranded Loose Tube for High Performance 1 G655 GYTS Outdoor Armored Fiber Optic Cable with ITU G652D and G657A Stranded Loose Tube for High Performance 2 G655 GYTS Outdoor Armored Fiber Optic Cable with ITU G652D and G657A Stranded Loose Tube for High Performance 3 G655 GYTS Outdoor Armored Fiber Optic Cable with ITU G652D and G657A Stranded Loose Tube for High Performance 4 G655 GYTS Outdoor Armored Fiber Optic Cable with ITU G652D and G657A Stranded Loose Tube for High Performance 5 G655 GYTS Outdoor Armored Fiber Optic Cable with ITU G652D and G657A Stranded Loose Tube for High Performance 6
Contact Us for Customization
Frequently Asked Questions
1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years' history, welcome to visit us!
2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.
3. Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4. Can you customize the product?
Yes, we can customize according to your requirements (logo, package, printing and so on).
5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.
6. Can we trust you?
We founded the factory has 18 years of history, products exported to over 25 countries.
7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.
8. What about Payment?
L/C, T/T, Western Union and Paypal are acceptable.
9. What mode of transportation do you support?
Ocean transportation, air transport, Express, etc.
