Outdoor Armored Fiber Optic Cable
>
GYXTW Outdoor Armored Fiber Optic Cable with Network Data Signal Transmission Corrosion Resistant and Excellent Mechanical Properties

GYXTW Outdoor Armored Fiber Optic Cable with Network Data Signal Transmission Corrosion Resistant and Excellent Mechanical Properties

Brand Name: HXCOWO
Model Number: HX-SW6
MOQ: 1000
Detail Information
Place of Origin:
Guangdong, China
Certification:
RoHS
Fiber Cores:
2-288 Cores
Fiber Type:
G652D/G657A1/G657A2
Diameter (2-12 Cores):
10.6 Mm
Diameter (14-24 Cores):
12 Mm
Diameter (26-36 Cores):
12 Mm
Diameter (38-48 Cores):
15 Mm
Weight (2-12 Cores):
124 Kg/km
Weight (14-24 Cores):
147 Kg/km
Weight (26-36 Cores):
150 Kg/km
Weight (38-48 Cores):
207 Kg/km
Tensile Force (Long Term):
1000 N
Tensile Force (Short Term):
3000 N
Squash Force (Long Term):
1000 N/10mm
Squash Force (Short Term):
3000 N/10mm
Bending Radius (Static):
10D
Bending Radius (Dynamic):
20D
Highlight:

Network Data Signal Transmission GYXTW Fiber Optic Cable

,

Corrosion Resistant Outdoor Armored Fiber Optic Cable

,

Excellent Mechanical Properties Armoured Fiber Optical Cable

Product Description
HXCOWO 12-24 Core GYXTW Outdoor Armoured Fiber Optical Cable
Technical Parameters
Fiber Cores Number Diameter (mm) Weight (kg/km)
2-12 10.6 124
14-24 12 147
26-36 12 150
38-48 15 207
Allowable Tensile Force (N) Allow Squash Force (N/10mm) Bending Radius (mm)
1000/3000 1000/3000 10D/20D
Product Features
  1. Excellent mechanical properties and temperature characteristics
  2. Loose tube material with good hydrolysis resistance and high strength
  3. Special oil paste filling provides critical fiber protection
  4. Good compression resistance and flexibility
  5. Double-sided coated steel strip (PSP) enhances moisture resistance
  6. Two parallel steel wires ensure superior tensile strength
  7. Compact diameter and lightweight for easy installation
  8. Extended delivery lengths available
GYXTW Outdoor Armored Fiber Optic Cable with Network Data Signal Transmission Corrosion Resistant and Excellent Mechanical Properties 0

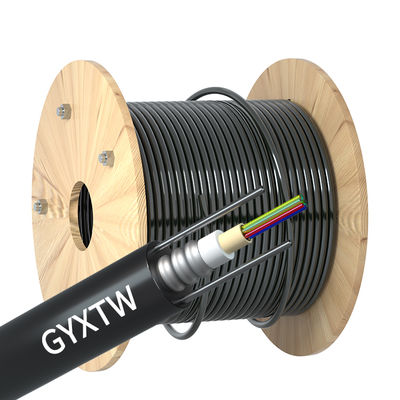

GYXTW Outdoor Bundled Tube Fiber Cable
Grade A fiber core with high-quality material selection and quality assurance.
GYXTW Outdoor Armored Fiber Optic Cable with Network Data Signal Transmission Corrosion Resistant and Excellent Mechanical Properties 1

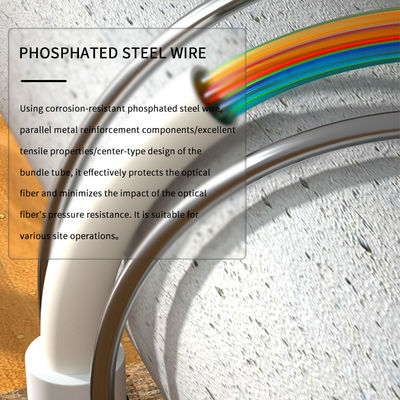

Phosphated Steel Wire Reinforcement
Corrosion-resistant phosphated steel wire with parallel metal reinforcement components provides excellent tensile properties. The center-type bundle tube design effectively protects the optical fiber while minimizing pressure impact, making it suitable for various installation environments.
GYXTW Outdoor Armored Fiber Optic Cable with Network Data Signal Transmission Corrosion Resistant and Excellent Mechanical Properties 2

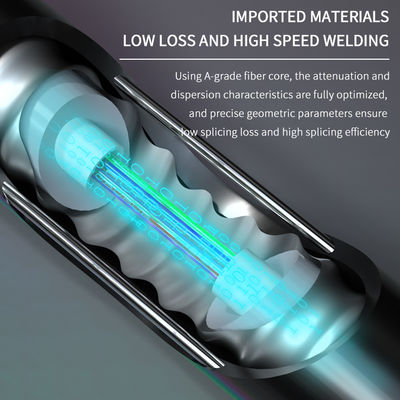

Imported Materials for Optimal Performance
Low loss and high speed welding: Using A-grade fiber core with optimized attenuation and dispersion characteristics. Precise geometric parameters ensure low splicing loss and high splicing efficiency.
GYXTW Outdoor Armored Fiber Optic Cable with Network Data Signal Transmission Corrosion Resistant and Excellent Mechanical Properties 3

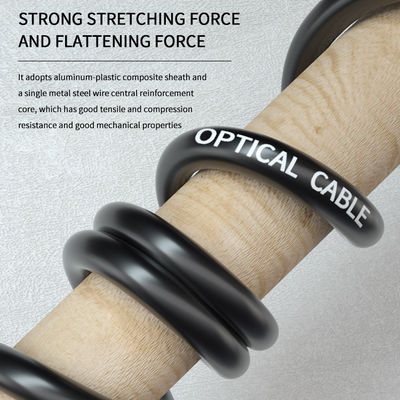

Superior Mechanical Properties
Features aluminum-plastic composite sheath and single metal steel wire central reinforcement core for excellent tensile and compression resistance with outstanding mechanical performance.
GYXTW Outdoor Armored Fiber Optic Cable with Network Data Signal Transmission Corrosion Resistant and Excellent Mechanical Properties 4

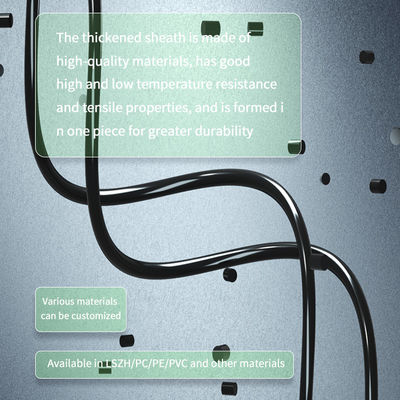

Customizable Materials
Thickened sheath made of high-quality materials provides excellent temperature resistance and tensile properties. Available in various customizable materials including LSZH, PC, PE, and PVC.
GYXTW Outdoor Armored Fiber Optic Cable with Network Data Signal Transmission Corrosion Resistant and Excellent Mechanical Properties 5

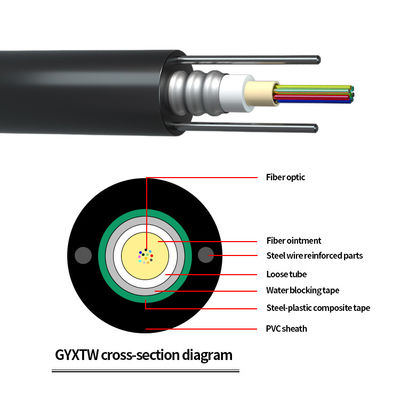

GYXTW Cable Structure
Single-mode or multi-mode optical fibers are inserted into high-modulus poly loose tubes filled with waterproof compound. The tubes are twisted around a central strengthening core with water-blocking fillers in the gaps. Features small diameter and lightweight design suitable for pipeline, overhead, and direct buried installations with excellent mechanical and temperature characteristics.
GYXTW Outdoor Armored Fiber Optic Cable with Network Data Signal Transmission Corrosion Resistant and Excellent Mechanical Properties 6 GYXTW Outdoor Armored Fiber Optic Cable with Network Data Signal Transmission Corrosion Resistant and Excellent Mechanical Properties 7
Custom Design Solutions
We accept custom designs to bring your specifications to reality.
Contact Us for Customization GYXTW Outdoor Armored Fiber Optic Cable with Network Data Signal Transmission Corrosion Resistant and Excellent Mechanical Properties 8
Frequently Asked Questions
1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years' history, welcome to visit us!
2. What is your minimum quantity?
1KM. We support new projects of our customers, trial orders are available.
3. Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4. Can you customize the product?
Yes, we can customize according to your requirements (logo, package, printing etc.).
5. How long will it take you to deliver?
Our usual delivery takes 15 to 20 days.
6. Can we trust you?
We have 18 years of manufacturing history with products exported to over 25 countries.
7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.
8. What about Payment?
L/C, T/T, Western Union and Paypal are acceptable.
9. What mode of transportation do you support?
Ocean transportation, air transport, Express, etc.
