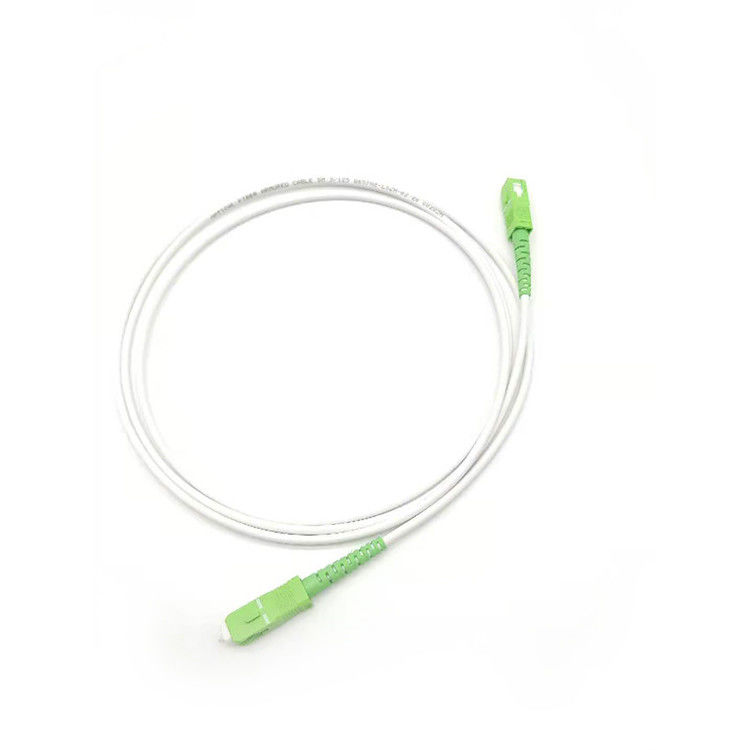

White Fiber Optic Patch Cord LSZH SC/APC To SC/APC SM 9/125 Low Insertion Loss

Brand Name: HXFiber
Model Number: HX-Patch Cord-32
Price: Negotiable
Packaging Details: paper box
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Type:
Fiber Optic Patch Cord
Use:
FTTH , FTTX
Warranty Time:
10 Years
Custom Length:
1/2/3/5/7/9/10 M Or As Your Inquiry
Insertion Loss:
< 0.2 DB
Cable Diameter:
0.9 / 2.0 / 3.0 Mm
Return Loss:
> 55 DB
Material Of Outer Sheath:
PVC,LSZH,PU,PE
Armored Tube:
With Or Without Follow Your Inquiry
Working Temperature(℃):
-25℃~+70℃
Connector Ferrule:
Zirconia Ceramic
Polish Type:
SMF:UPC-UPC;UPC-APC;APC-UPC;APC-APC; MMF:UPC-UPC
MOQ:
1pcs
Port:
Shenzhen
Supply Ability:
1500000 Piece/Pieces per Month
Highlight:

White Fiber Optic Patch Cord

,

Fiber Optic Patch Cord LSZH

,

Low Insertion Loss Fiber Patch Cord

Product Description
Products Description

Fiber Optic Patch Cord SC/APC to SC/APC SM 9/125 3.0mm LSZH White Low Insertion Loss

White Fiber Optic Patch Cord LSZH SC/APC To SC/APC SM 9/125 Low Insertion Loss
Connector Type
SC to SC
Jacket OD
3.0mm
Fiber Mode
9/125μm
Jacket Color
White
Polish Type
APC to APC
Wavelength
1310/1550nm
Fiber Count
simplex
Jacket Material
PVC/LSZH
Insertion loss
≤0.3dB
Interchangeability
≤0.2dB
Return loss
≥55dB
Vibration
≤0.2dB
Operating temperature
-40~75°C
Storage temperature
-45~85°C
Length
2/5/10/15/20m/100m customized length
delivery date
3-7days according the quantity
White Fiber Optic Patch Cord LSZH SC/APC To SC/APC SM 9/125 Low Insertion Loss
White Fiber Optic Patch Cord LSZH SC/APC To SC/APC SM 9/125 Low Insertion Loss
Armored Fiber Patch Cord
Structure:
tight-buffered fiber+ stainless steel tube+ Aramid yarn + jacket

Tight-buffered fiber: SM:G652D,G657A1,G657A2 or MM:62.5/125,50/125(OM3,OM4) available 0.9mm PVC tight-buffered fiber
Color:SM/ White or yellow MM/Blue or orange
Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;

Good mechanical and environmental characteristics;
