Customer evaluation
|
| Brand Name: | HX |
| Model Number: | HX-GL2 |
| Price: | Negotiable |

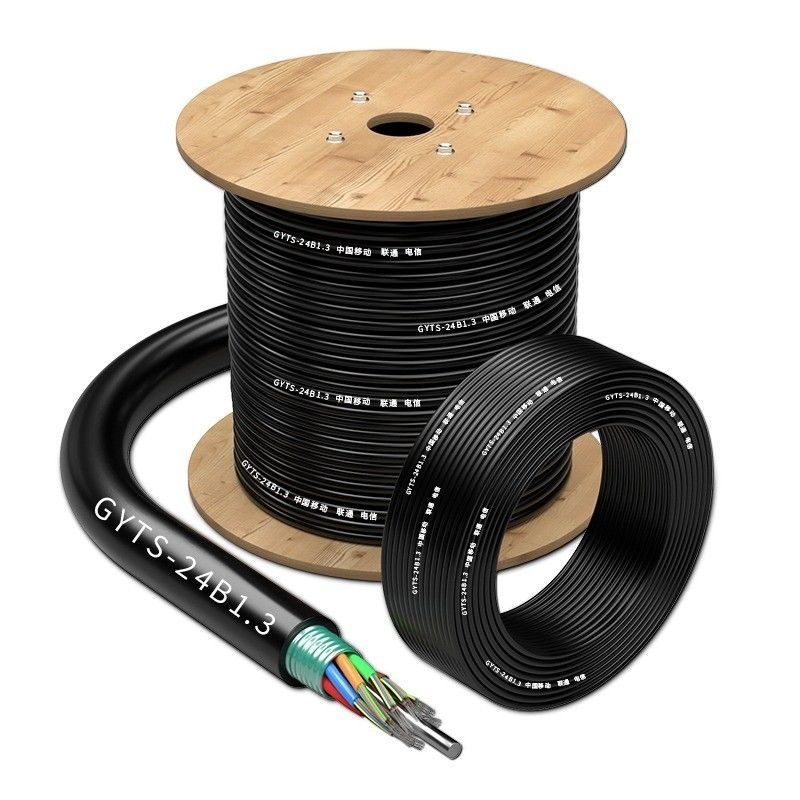

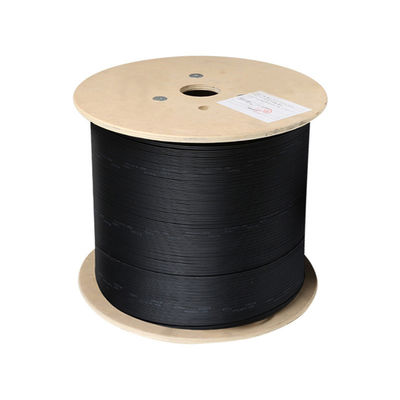

| Packaging Details: | Wooden reel, Iron-wooden reel |

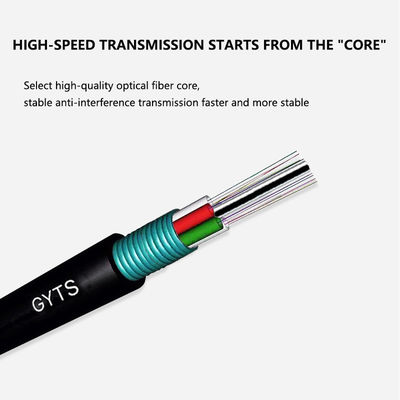

Black GYTS 72B1.3 Outdoor G652D 36B1.3 PE Armoured Fiber Optic Cable for Overhead Pipeline
|
|
|
G.652
|
G.655
|
50/125 μm
|
62.5/125 μm
|
|||||
|
Attenuation (+20°C)
|
@850nm
|
|
|
≤3.0dB/km
|
≤3.3dB/km
|
|||||
|
|
@1300nm
|
|
|
≤1.0dB/km
|
≤1.0dB/km
|
|||||
|
|
@1310nm
|
≤0.36dB/km
|
≤0.40dB/km
|
|
|
|||||
|
|
@1550nm
|
≤0.22dB/km
|
≤0.23 dB/km
|
|
|
|||||
|
|
@850nm
|
|
|
≥500 MHz·km
|
≥200 MHz·km
|
|||||
|
|
@1300nm
|
|
|
≥1000 MHz·km
|
≥600 MHz·km
|
|||||
|
Numerical aperture
|
|
|
|
0.200±0.015NA
|
0.275±0.015NA
|
|||||
|
Optical fiber cable cut-off wavelength
|
|
≤1260nm
|
≤1450nm
|
|
|
|||||
|
Applicable: pipeline, overhead
|
|
|
|
|
|
|||||
|
Optic fibre cable
(in increments of 2 fibers)
|
Number of fibers
|
Number of casings
|
Number of filling ropes
|
Fiber optic cable diameter
(mm)
|
|
GYTA-2~6
|
2~6
|
1
|
4
|
9.2
|
|
GYTA-8~12
|
8~12
|
2
|
3
|
9.2
|
|
GYTA-14～18
|
14~18
|
3
|
2
|
9.2
|
|
GYTA-20~24
|
20~24
|
4
|
1
|
9.2
|
|
GYTA-26~30
|
26~30
|
5
|
0
|
9.2
|
|
GYTA-32~36
|
32~36
|
6
|
0
|
9.7
|
|
GYTA-38～48
|
38~48
|
4
|
1
|
10.5
|
|
GYTA-50~60
|
50~60
|
5
|
0
|
10.5
|
|
GYTA-62~72
|
62~72
|
6
|
0
|
11.5
|
|
GYTA-74~84
|
74~84
|
7
|
1
|
13.2
|
|
GYTA-86～96
|
86~96
|
8
|
0
|
13.2
|
|
GYTA-98~108
|
98~108
|
9
|
1
|
14.6
|
|
GYTA-110~120
|
110~120
|
10
|
0
|
14.6
|
|
GYTA-122~132
|
122~132
|
11
|
1
|
16.5
|
|
GYTA-134~144
|
134~144
|
12
|
0
|
16.5
|
|
GYTA-146~216
|
146~216
|
13-18
|
5-0
|
16.5
|
|
GYTA-288
|
288
|
24
|
0
|
16.5
|
|
Fiber Optic Cable Weight
(kg/km)
|
allowable tensile force
long term/short term
(N)
|
allowable flat pressure
long term/short term
(N/100mm)
|
bending radius
static/dynamic
(mm)
|
|||
|
80
|
600/1500
|
300/1000
|
10D/20D
|
|||
|
80
|
|
|
|
|||
|
80
|
|
|
|
|||
|
80
|
|
|
|
|||
|
80
|
|
|
|
|||
|
97
|
1000/3000
|
|
|
|||
|
109
|
|
|
|
|||
|
109
|
|
|
|
|||
|
126
|
|
|
|
|||
|
153
|
|
|
|
|||
|
153
|
|
|
|
|||
|
182
|
|
|
|
|||
|
182
|
|
|
|
|||
|
221
|
|
|
|
|||
|
221
|
|
|
|
|||
|
222
|
|
|
|
|||
|
283
|
|
|
|
|||
|
*Storage and use temperature: -40°C to +70°C. (The above parameters are for reference only)
|
|
|
|
|||
|
|
