Brand Name: | HX |
Model Number: | HX-GL2 |
Price: | Negotiable |

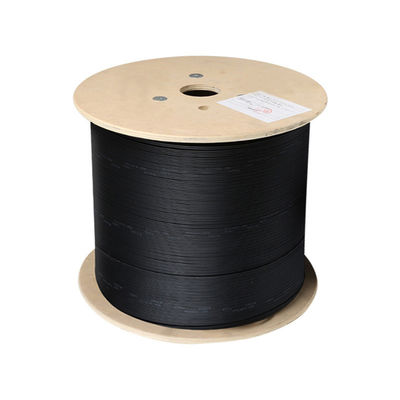

Packaging Details: | Wooden reel, Iron-wooden reel |
G.652 | G.655 | 50/125 μm | 62.5/125 μm | |||||||
Attenuation (+20°C) | @850nm | ≤3.0dB/km | ≤3.3dB/km | |||||||
@1300nm | ≤1.0dB/km | ≤1.0dB/km | ||||||||
@1310nm | ≤0.36dB/km | ≤0.40dB/km | ||||||||
@1550nm | ≤0.22dB/km | ≤0.23 dB/km | ||||||||
@850nm | ≥500 MHz·km | ≥200 MHz·km | ||||||||
@1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||||||||
Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | ||||||||
Optical fiber cable cut-off wavelength | ≤1260nm | ≤1450nm | ||||||||
Applicable: pipeline, overhead |

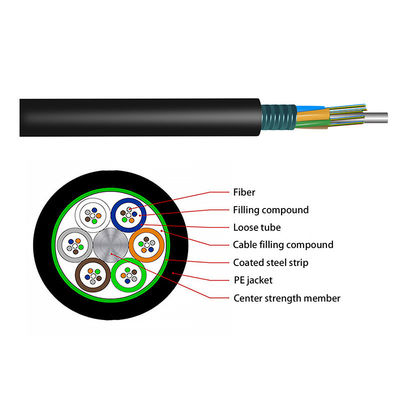

Optic fibre cable (in increments of 2 fibers) | Number of fibers | Number of casings | Number of filling ropes | Fiber optic cable diameter (mm) |
GYTA-2~6 | 2~6 | 1 | 4 | 9.2 |
GYTA-8~12 | 8~12 | 2 | 3 | 9.2 |
GYTA-14~18 | 14~18 | 3 | 2 | 9.2 |
GYTA-20~24 | 20~24 | 4 | 1 | 9.2 |
GYTA-26~30 | 26~30 | 5 | 0 | 9.2 |
GYTA-32~36 | 32~36 | 6 | 0 | 9.7 |
GYTA-38~48 | 38~48 | 4 | 1 | 10.5 |
GYTA-50~60 | 50~60 | 5 | 0 | 10.5 |
GYTA-62~72 | 62~72 | 6 | 0 | 11.5 |
GYTA-74~84 | 74~84 | 7 | 1 | 13.2 |
GYTA-86~96 | 86~96 | 8 | 0 | 13.2 |
GYTA-98~108 | 98~108 | 9 | 1 | 14.6 |
GYTA-110~120 | 110~120 | 10 | 0 | 14.6 |
GYTA-122~132 | 122~132 | 11 | 1 | 16.5 |
GYTA-134~144 | 134~144 | 12 | 0 | 16.5 |
GYTA-146~216 | 146~216 | 13-18 | 5-0 | 16.5 |
GYTA-288 | 288 | 24 | 0 | 16.5 |
Fiber Optic Cable Weight (kg/km) | allowable tensile force long term/short term (N) | allowable flat pressure long term/short term (N/100mm) | bending radius static/dynamic (mm) | |||
80 | 600/1500 | 300/1000 | 10D/20D | |||
80 | ||||||
80 | ||||||
80 | ||||||
80 | ||||||
97 | 1000/3000 | |||||
109 | ||||||
109 | ||||||
126 | ||||||
153 | ||||||
153 | ||||||
182 | ||||||
182 | ||||||
221 | ||||||
221 | ||||||
222 | ||||||
283 | ||||||
*Storage and use temperature: -40°C to +70°C. (The above parameters are for reference only) |
