Outdoor Armored Fiber Optic Cable

12/24/48 Cores Armored Fiber Optic Cable for Outdoor Telecom Comunication Aerial Steal

All Category

Outdoor Armored Fiber Optic Cable

12/24/48 Cores Armored Fiber Optic Cable for Outdoor Telecom Comunication Aerial Steal

Name: 12/24/48 Cores Armored Fiber Optic Cable for Outdoor Telecom Comunication Aerial Steal
Brand: HXCOWO
SKU: HX-SW1
Rating: 4.7 (107 reviews)

Brand Name:	HXCOWO
Model Number:	HX-SW1
MOQ:	50 meters
Price:	Negotiable
Packaging Details:	Wooden shaft+Export cardboard box

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

RoHS

Type:

Outdoor Fiber Optic Cable, Outdoor

Number Of Conductors:

≥ 10

Color:

Customized Color

Application:

Telecom Comunication

Product Name:

Outdoor Optic Fiber Cable

Jacket:

PVC LSZH LSOH PE HDPE

Length:

Custom Length

Fiber Type:

G652D/G657A1/G657A2

Package:

Wooden Drum

Service:

OEM ODM Accept

Port:

Shenzhen

Supply Ability:

1500000 Piece/Pieces per Month

Product Description

Technical Parameters
Fiber Optic Cable Model (in increments of 2 fibers)	Fiber Quantity	Optical Cable Core Unit Number	Maximum Number Of Fibers In Loose Tube
GYTA-2∽30	2∽30	5	6
GYTA-32∽36	32∽36	6	6
GYTA-38∽60	38∽60	5	12
GYTA-62∽72	62∽72	6	12
GYTA-74∽96	74∽96	8	12
GYTA-98∽120	98∽120	10	12
GYTA-122∽144	122∽144	12	12
GYTA-146∽216	146∽216	18	12
GYTA-218∽288	218∽288	24	12

Optical Cable Diameter mm	Optical Cable Weight Kg/Km	Allowable Tensile Force Long-Term/Short-Term N/100mm	Allowable Flattening Force Long/Short Term N/100mm
9.2	85	600/1500	300/1000
10.2	107	600/1500	300/1000
10.4	110	600/1500	300/1000
11.4	130	600/1500	300/1000
13.6	165	600/1500	300/1000
14.8	195	600/2000	300/1000
16.4	236	600/2500	300/1000
16.4	232	600/2500	300/1000
20.0	300	1000/3000	300/1000
Adapt To The Temperature Range (℃)			-40v+60
Minimum Bending Radius	Static: 10 times the fiber optic cable diameter Dynamic: 20 times the fiber optic cable diameter			Static: 10 times the fiber optic cable diameter
Note: The standard loose-tube stranded light armored (GYTA) optical cable complies with YD/T901-2001 and IEC60794-1 standards. This product is mostly used for long-distance communication and inter-office communication pipelines and overhead laying. Fiber optic cables with different core counts and different lengths can be provided according to customer needs.

Fiber Standard Comparison
Optical Fiber Type	Muliti Mode	G.651	A1a:50/125	Gradient Refractive Index
	Muliti Mode	G.651		Gradient Refractive Index		A1b:50/126
		Single Mode	G.652 (A、B、C、D)		B1.1 Conventional
				G.653		B2 zero-dispersion shift
				G.654		B1.2 cut-off is long shifted
				G.655		B4 non-zero dispersion shift

PRODUCT DESCRIPTION

OUTDOOR FIBER OPTIC CABLE

A-grade Fiber Core/Quality Assurance

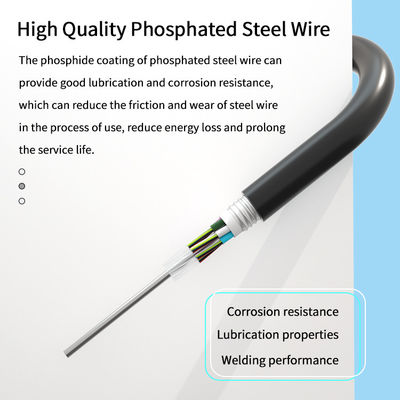

HIGH QUALITY PHOSPHATED STEEL WIRE

The phosphide coating of phosphated steel wire can provide good lubrication and corrosion resistance, which can reduce the friction and wear of steel wire in the process of use, reduce energy loss and prolong the service life.

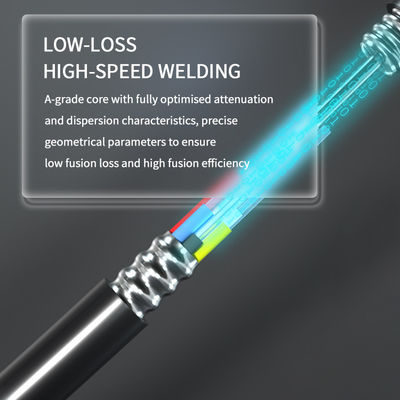

LOW-LOSS, HIGH-SPEED WELDING

A-grade core with fully optimised attenuation and dispersion characteristics, precise geometrical parameters to ensure low fusion loss and high fusion efficiency

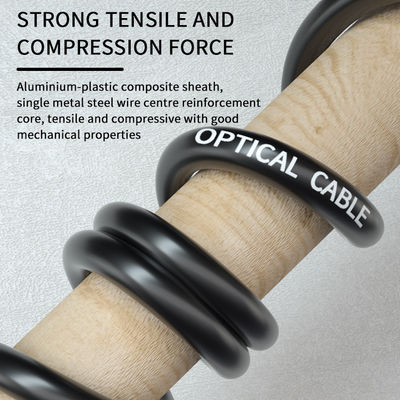

STRONG TENSILE AND COMPRESSION FORCE

Aluminium-plastic composite sheath, single metal steel wire centre reinforcement core, tensile and compressive with good mechanical properties

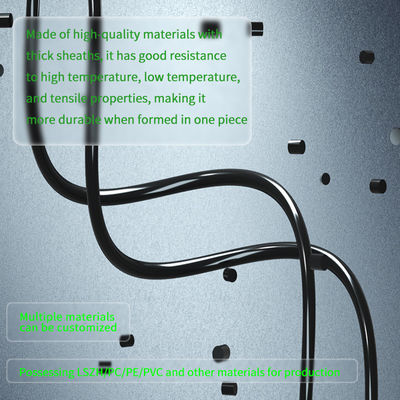

Made of high-quality materials with thick sheaths, it has good resistance to high temperature, low temperature, and tensile properties, making it more durable when formed in one piece

Possessing LSZH/PC/PE/PVC and other materials for production

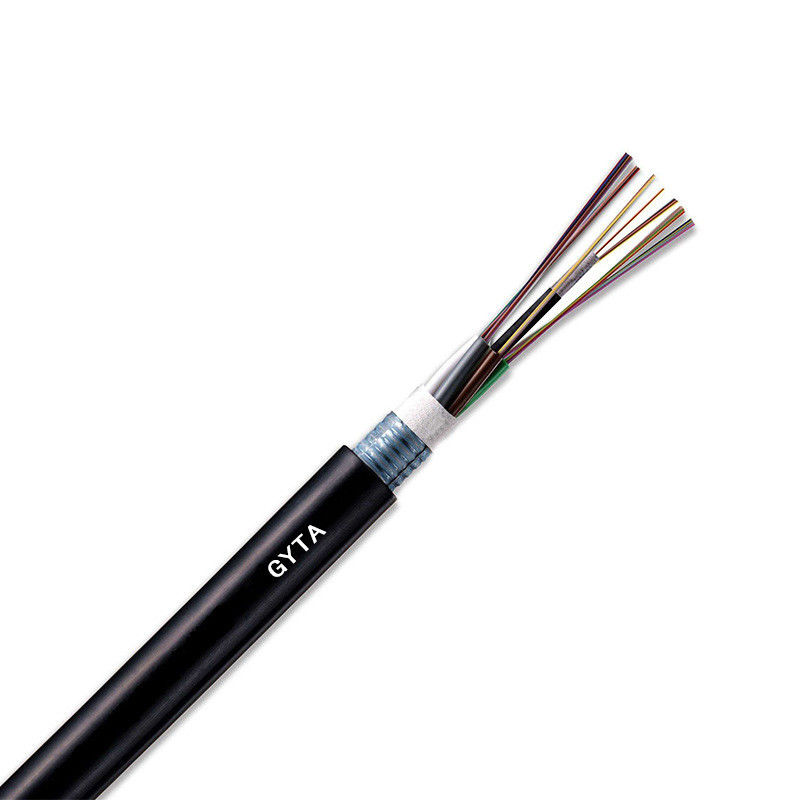

GYTA

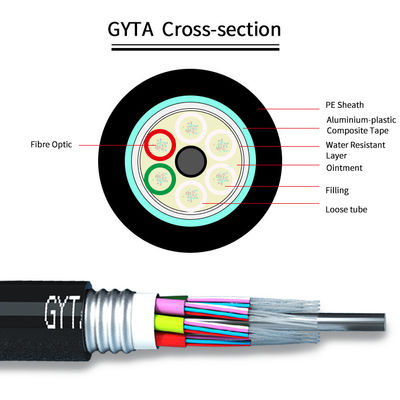

GYTA fiber optic cable is of a laminated construction, with the optical fiber placed in a loose tube filled with a waterproof compound and a metal reinforcement core in the centre of the core. Some fiber optic cables have a layer of polyethylene (PE) over the metal reinforcement. The loose tube (filler rope) is twisted around the central reinforcing core to form a compact round core, and the gaps in the core are filled with water-resistant filler. Aluminium plastic coated tape (APL) longitudinal wrapping and then extruded polyethylene sheath into a cable. GYTA fiber optic cable has good waterproof performance, suitable for pipe laying and overhead laying.

PRODUCT DESIGN

Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”

COMPANY PROFILE

Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. The company was founded in 2010 with its own brand HXCOWO, dedicated to providing optical fiber cabling system solutions for data centers, enterprise networks, and operators. Annually, there are a bunch of customers visited us from around the world. With over 10 years' development, a registered capital of USD 5 million, a 6,000 sqm workplace, 7 production assemblies were built and about 70 skilled workers were together. Our monthly output can reach up to 1500km fiber optic cables. With the belief of Quality is our culture & Long term business is our goal. So quality is always put to be a first place in our factory. With an excellent management system, we passed ISO9001:2015 certificate in 2021. on Jule 18, 2021, Alibaba group visited us and verified us. We gained the honorary and passed by world-leading inspection company Intertek group. We develop and produce a variety of fiber optical cables and patch cords. with Models such as FTTH, GYXTW, GYFTY, GYTS, GYTA, GYTA53, GYTS53, ADSS, GYTC8S etc. There are many Chinese companies and trading companies purchase fiber cables from us and resale it to the worldwide. Our products are exported to the Europe and America, Asia, South America, Africa etc. Welcome to visit our factory !

SERVICE & PRODUCTION CAPACITY

FOREIGN EXHIBITIONS

COOPERATIVE BRAND & CERTIFICATION

PAYMENT & TRANSPORTATION METHOD

FAQ

1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
