Brand Name: | HXCOWO |
Model Number: | HX-SW1 |
MOQ: | 50 meters |
Price: | Negotiable |
Packaging Details: | Wooden shaft+Export cardboard box |
Technical Parameters
|
|
|
|
|||
Fiber Optic Cable Model
(in increments of 2 fibers)
|
Fiber
Quantity
|
Optical Cable Core
Unit Number
|
Maximum Number
Of Fibers In Loose Tube
|
|||
GYTA-2∽30
|
2∽30
|
5
|
6
|
|||
GYTA-32∽36
|
32∽36
|
6
|
6
|
|||
GYTA-38∽60
|
38∽60
|
5
|
12
|
|||
GYTA-62∽72
|
62∽72
|
6
|
12
|
|||
GYTA-74∽96
|
74∽96
|
8
|
12
|
|||
GYTA-98∽120
|
98∽120
|
10
|
12
|
|||
GYTA-122∽144
|
122∽144
|
12
|
12
|
|||
GYTA-146∽216
|
146∽216
|
18
|
12
|
|||
GYTA-218∽288
|
218∽288
|
24
|
12
|
Optical Cable Diameter
mm
|
Optical Cable Weight
Kg/Km
|
Allowable Tensile Force Long-Term/Short-Term N/100mm
|
Allowable Flattening Force Long/Short Term
N/100mm
|
|||
9.2
|
85
|
600/1500
|
300/1000
|
|||
10.2
|
107
|
600/1500
|
300/1000
|
|||
10.4
|
110
|
600/1500
|
300/1000
|
|||
11.4
|
130
|
600/1500
|
300/1000
|
|||
13.6
|
165
|
600/1500
|
300/1000
|
|||
14.8
|
195
|
600/2000
|
300/1000
|
|||
16.4
|
236
|
600/2500
|
300/1000
|
|||
16.4
|
232
|
600/2500
|
300/1000
|
|||
20.0
|
300
|
1000/3000
|
300/1000
|
|||
Adapt To The Temperature Range (℃)
|
|
-40v+60
|
|
|||
Minimum Bending Radius
|
Static: 10 times the fiber optic cable diameter
Dynamic: 20 times the fiber optic cable diameter
|
Static: 10 times the fiber optic cable diameter
|
|
|||

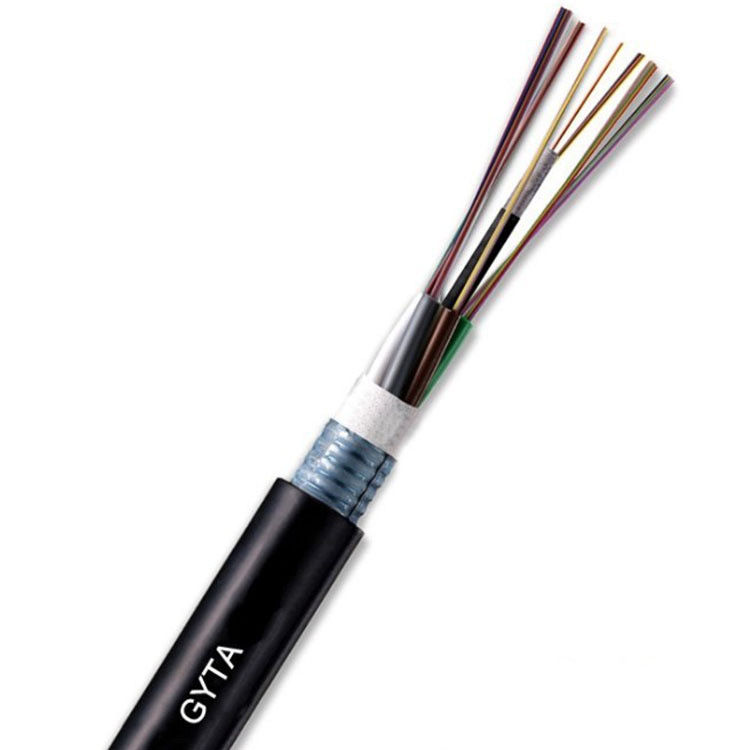

Note: The standard loose-tube stranded light armored (GYTA) optical cable complies with YD/T901-2001 and IEC60794-1 standards. This product is mostly used for long-distance communication and inter-office communication pipelines and overhead laying. Fiber optic cables with different core counts and different lengths can be provided according to customer needs.
|
|
|
|
Fiber Standard Comparison
|
|
|
|
|
||||
Optical Fiber Type
|
Muliti Mode
|
G.651
|
A1a:50/125
|
Gradient Refractive Index
|
||||
|
|
|
A1b:50/126
|
|
||||
|
Single Mode
|
G.652 (A,B,C,D)
|
|
B1.1 Conventional
|
||||
|
|
G.653
|
|
B2 zero-dispersion shift
|
||||
|
|
G.654
|
|
B1.2 cut-off is long shifted
|
||||
|
|
G.655
|
|
B4 non-zero dispersion shift
|
