Brand Name: | HXCOWO |
Model Number: | HX-SW4 |
MOQ: | 50 meters |
Price: | Negotiable |
Packaging Details: | Wooden shaft+Export cardboard box |

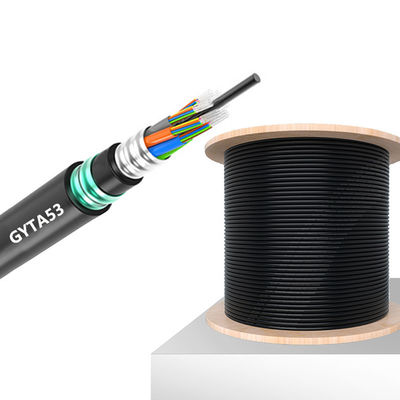

2-288 Cores GYTA53 Armored Fiber Optic Cable with HXCOWO PSP Moisture-Proof Material
TECHNICAL PARAMETERS
|
|
|
|
|||
Core Number
|
Loose Tube Quantity
|
Filling Rope Number
|
Fiber Optic Cable Weight (kg/km)
|
|||
2-6
|
1
|
5
|
177
|
|||
8-12
|
2
|
4
|
177
|
|||
14-18
|
3
|
3
|
177
|
|||
20-24
|
4
|
2
|
177
|
|||
26-30
|
5
|
1
|
177
|
|||
32-36
|
6
|
0
|
177
|
|||
38-48
|
4
|
1
|
194
|
|||
50-60
|
5
|
0
|
194
|
|||
62-72
|
6
|
0
|
204
|
|||
74-84
|
7
|
1
|
239
|
|||
86-96
|
8
|
0
|
239
|
|||
98-108
|
9
|
1
|
275
|
|||
110-120
|
10
|
0
|
275
|
|||
122-132
|
11
|
1
|
312
|
|||
134-144
|
12
|
0
|
312
|
|||
146-216
|
13-18
|
5-0
|
312
|
Allowable Tensile Force
Long Term/Short Term
(N)
|
Allowable Tensile Force
Long Term/Short Term
(N)
|
Allowable Flattening Force Long Term/Short Term
(N/100mm)
|
Bending Radius
Static/Dynamic
(mm)
|
|||
1000/3000
|
800/1500
|
1000/3000
|
12.5D/25D
|
|||
PRODUCT FEATURES
|
|
|
|
|||
①The inner casing is filled with buffer grease, which protects the optical fiber and plays a waterproof role
|
|
|
|
|||
②The use of loose casing stranded to ensure the stability of the cable structure
|
|
|
|
|||
③Strengthening parts to bear the axial load
|
|
|
|
|||
④The cable core is filled with water-blocking ointment, which can effectively waterproof the cable
|
|
|
|
|||
⑤Aluminum tape longitudinal wrapping, good moisture barrier performance
|
|
|
|
|||
⑥The inner sheath can effectively buffer the external mechanical load
|
|
|
|
|||
⑦Longitudinal wrapping of steel tape, with good lateral pressure resistance
|
|
|
|
