Fiber Optic Pigtail
>
SM MM LC/UPC Fiber Optic Pigtail Single Mode For ODF Patch Panel

SM MM LC/UPC Fiber Optic Pigtail Single Mode For ODF Patch Panel

Brand Name: HXCOWO
Model Number: HX-WX1
MOQ: 100 pieces
Price: Negotiable
Packaging Details: OPP bag+Export cardboard box
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE RoHS FCC
Type:
Fiber Pigtails
Use:
FTTX
Warranty Time:
1 Year
Network:
Wireless Lan, Wifi, 4g, 3G
Product Name:
Fiber Optic Pigtail
Application:
FTTN
Color:
Customer Requirement
Fiber Type:
SM MM
Connector Type:
SC FC LC ST
Wavelength:
850nm/1310nm/1550nm
Material:
PVC LSZH
Length:
Customized Lengths(1m/2m/3m...+1
Service:
OEM ODM Accept
Port:
Shenzhen
Supply Ability:
1500000 Piece/Pieces per Month
High Light:

LC/UPC Fiber Optic Pigtail

,

Fiber Optic Pigtail Single Mode

,

ODF Fiber Optic Pigtail

Product Description

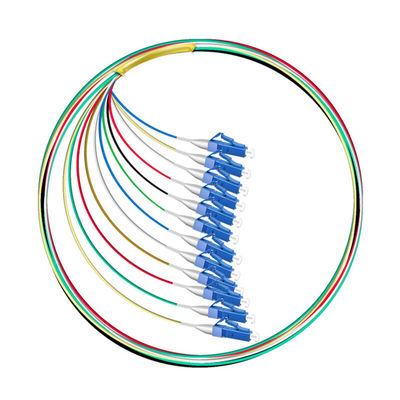

FTTX HXCOWO 12 Standard Color LC/UPC Fiber Optic Pigtail for ODF Patch Panel

PRODUCT PARAMETERS





Insertion loss
Singlemode
PC≤ 0.3dB
UPC≤ 0.2dB
APC ≤ 0.18dB

Multimode
PC≤ 0.5dB
UPC≤ 0.3dB
APC ≤ 0.3dB

Return loss
Singlemode
PC≥ 48dB
UPC≥ 50dB
APC ≥ 60dB

Multimode
PC≥ 25dB
UPC≥ 45dB
APC ≥ 50dB
Reaptability
≤ 0.1db



Changeability
≤ 0.2dB



Working Temperature

-40 to +80° C



Durability
1000 times



Sustain Tension
≥ 100N



Fiber
9/125um , 50/125um, 62.5/125um, etc.



Diameter
0.9mm 2.0mm 3.0mm, etc.



Cable Material
PVC, LSZH



Cores
Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, etc



PRODUCT DESCRIPTION
SM MM LC/UPC Fiber Optic Pigtail Single Mode For ODF Patch Panel 0
HIGH QUALITY SINGLE MODE BUNDLE FIBER PIGTAIL
Efficient transmission
Low loss
Resistance to pulling

SM MM LC/UPC Fiber Optic Pigtail Single Mode For ODF Patch Panel 1

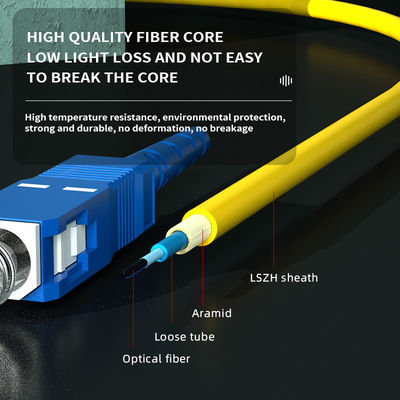

HIGH QUALITY FIBER CORE
LOW LIGHT LOSS AND NOT EASY TO BREAK THE CORE

High temperature resistance, environmental protection, strong and durable, no deformation, no breakage

SM MM LC/UPC Fiber Optic Pigtail Single Mode For ODF Patch Panel 2

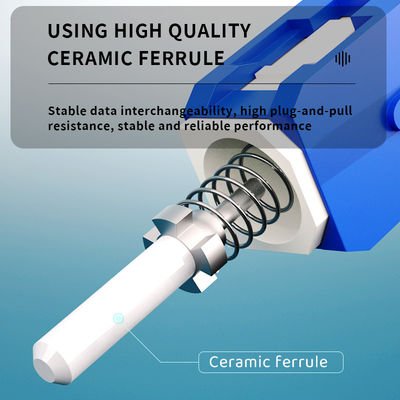

USING HIGH QUALITY CERAMIC FERRULE

Stable data interchangeability, high plug-and-pull resistance, stable and reliable performance
SM MM LC/UPC Fiber Optic Pigtail Single Mode For ODF Patch Panel 3

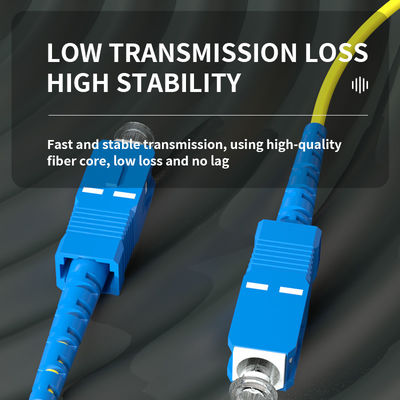

LOW TRANSMISSION LOSS
HIGH STABILITY
Fast and stable transmission, using high-quality fiber core, low loss and no lag
SM MM LC/UPC Fiber Optic Pigtail Single Mode For ODF Patch Panel 4

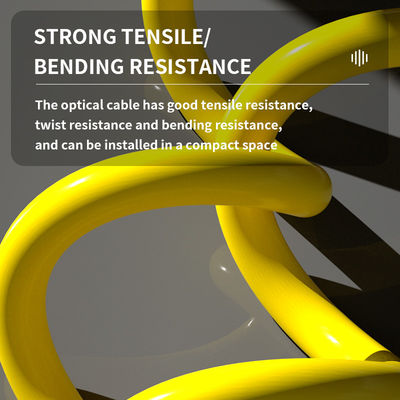

STRONG TENSILE/BENDING RESISTANCE

The optical cable has good tensile resistance, twist resistance and bending resistance, and can be installed in a compact space
SM MM LC/UPC Fiber Optic Pigtail Single Mode For ODF Patch Panel 5
MADE OF ENVIRONMENTALLY FRIENDLY MATERIAL LSZH
Wear-resistant and corrosion-resistant, environmentally friendly and odor-free
SM MM LC/UPC Fiber Optic Pigtail Single Mode For ODF Patch Panel 6

SM MM LC/UPC Fiber Optic Pigtail Single Mode For ODF Patch Panel 7
PRODUCT DESIGN
SM MM LC/UPC Fiber Optic Pigtail Single Mode For ODF Patch Panel 8
Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”
SM MM LC/UPC Fiber Optic Pigtail Single Mode For ODF Patch Panel 9
COMPANY PROFILE

SM MM LC/UPC Fiber Optic Pigtail Single Mode For ODF Patch Panel 10
Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. The company was founded in 2010 with its own brand HXCOWO, dedicated to providing optical fiber cabling system solutions for data centers, enterprise networks, and operators. Annually, there are a bunch of customers visited us from around the world. With over 10 years' development, a registered capital of USD 5 million, a 6,000 sqm workplace, 7 production assemblies were built and about 70 skilled workers were together. Our monthly output can reach up to 1500km fiber optic cables. With the belief of Quality is our culture & Long term business is our goal. So quality is always put to be a first place in our factory. With an excellent management system, we passed ISO9001:2015 certificate in 2021. on Jule 18, 2021, Alibaba group visited us and verified us. We gained the honorary and passed by world-leading inspection company Intertek group. We develop and produce a variety of fiber optical cables and patch cords. with Models such as FTTH, GYXTW, GYFTY, GYTS, GYTA, GYTA53, GYTS53, ADSS, GYTC8S etc. There are many Chinese companies and trading companies purchase fiber cables from us and resale it to the worldwide. Our products are exported to the Europe and America, Asia, South America, Africa etc. Welcome to visit our factory !

SERVICE & PRODUCTION CAPACITY
SM MM LC/UPC Fiber Optic Pigtail Single Mode For ODF Patch Panel 11
FOREIGN EXHIBITIONS
SM MM LC/UPC Fiber Optic Pigtail Single Mode For ODF Patch Panel 12
COOPERATIVE BRAND & CERTIFICATION
SM MM LC/UPC Fiber Optic Pigtail Single Mode For ODF Patch Panel 13
PAYMENT & TRANSPORTATION METHOD
SM MM LC/UPC Fiber Optic Pigtail Single Mode For ODF Patch Panel 14
FAQ
1. Are you the real manufacturer?
Yes.  We are the real manufacturer  with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?
We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
