Brand Name: | HXCOWO |
Model Number: | HX-SW6 |
MOQ: | 1000 meters |
Price: | Negotiable |
Packaging Details: | Wooden shaft+Export cardboard box |

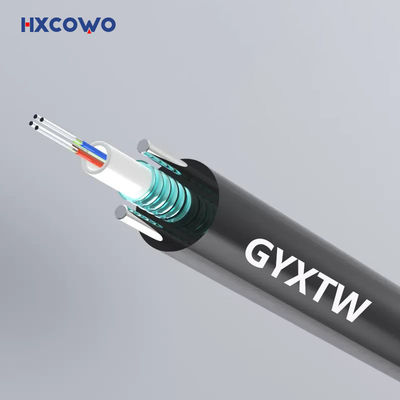

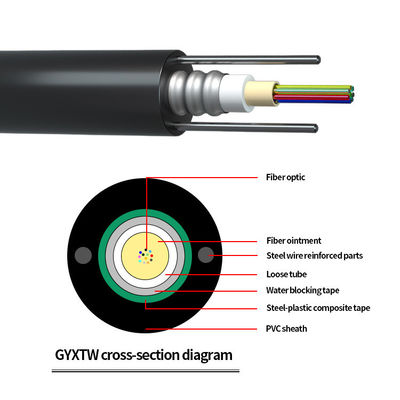

HXCOWO GYXTW 4 Core G652D G657A Outdoor Armoured Fiber Optic Cable within High Speed
TECHNICAL PARAMETERS
|
|
|
||
Fiber Cores Number
|
Diameter (mm)
|
Weight (kg/km)
|
||
2-12
|
10.6
|
124
|
||
14-24
|
12
|
147
|
||
26-36
|
12
|
150
|
||
38-48
|
15
|
207
|
Allowable Tensile Force
Long Term/Short Term
(N)
|
Allow Squash Force
Long Term/Short Term
(N/10mm)
|
Bending Radius
Static/Dynamic
(mm)
|
||
1000/3000
|
1000/3000
|
10D/20D
|
||
PRODUCT FEATURES
|
|
|
||
①Has excellent mechanical properties and temperature characteristics
|
|
|
||
②The loose tube material itself has good hydrolysis resistance and high strength
|
|
|
||
③The tube is filled with special oil paste, providing critical protection for the optical fiber
|
|
|
||
④Good compression resistance and softness
|
|
|
||
⑤Double sided coated steel strip (PSP) improves the moisture resistance of fiber optic cables
|
|
|
||
⑥Two parallel steel wires ensure the tensile strength of fiber optic cables
|
|
|
||
⑦Small diameter, light weight, easy to lay
|
|
|
||
⑧Long delivery length
|
|
|
