Outdoor Armored Fiber Optic Cable

G652D/G657A1/G657A2 Fiber Type Outdoor Fiber Optic Cable for HXCOWO SM 2/4/6/ Core GYXTW

All Category

Outdoor Armored Fiber Optic Cable

G652D/G657A1/G657A2 Fiber Type Outdoor Fiber Optic Cable for HXCOWO SM 2/4/6/ Core GYXTW

Brand Name:	HXCOWO
Model Number:	HX-SW6
MOQ:	1000 meters
Price:	Negotiable
Packaging Details:	Wooden shaft+Export cardboard box

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Type:

Outdoor Fiber Optic Cable

Number Of Conductors:

Product Name:

GYXTW Fiber Cable

Application:

Telecom Comunication

Length:

Custom Length

Fiber Type:

G652D/G657A1/G657A2

Package:

Wooden Drum

Fiber Count:

2-288 Cores

Keyword:

High Speed

Function:

Network Data Signal Transmission

Service:

OEM ODM Accept

Port:

Shenzhen

Supply Ability:

1500000 Piece/Pieces per Month

Highlight:

GYXTW Outdoor Fiber Optic Cable

HXCOWO Outdoor Fiber Optic Cable

SM Outdoor Fiber Optic Cable

Product Description

TECHNICAL PARAMETERS
Fiber Cores Number	Diameter (mm)	Weight (kg/km)
2-12	10.6	124
14-24	12	147
26-36	12	150
38-48	15	207

Allowable Tensile Force Long Term/Short Term (N)	Allow Squash Force Long Term/Short Term (N/10mm)	Bending Radius Static/Dynamic (mm)
1000/3000	1000/3000	10D/20D
PRODUCT FEATURES
①Has excellent mechanical properties and temperature characteristics
②The loose tube material itself has good hydrolysis resistance and high strength
③The tube is filled with special oil paste, providing critical protection for the optical fiber
④Good compression resistance and softness
⑤Double sided coated steel strip (PSP) improves the moisture resistance of fiber optic cables
⑥Two parallel steel wires ensure the tensile strength of fiber optic cables
⑦Small diameter, light weight, easy to lay
⑧Long delivery length

PRODUCT DESCRIPTION

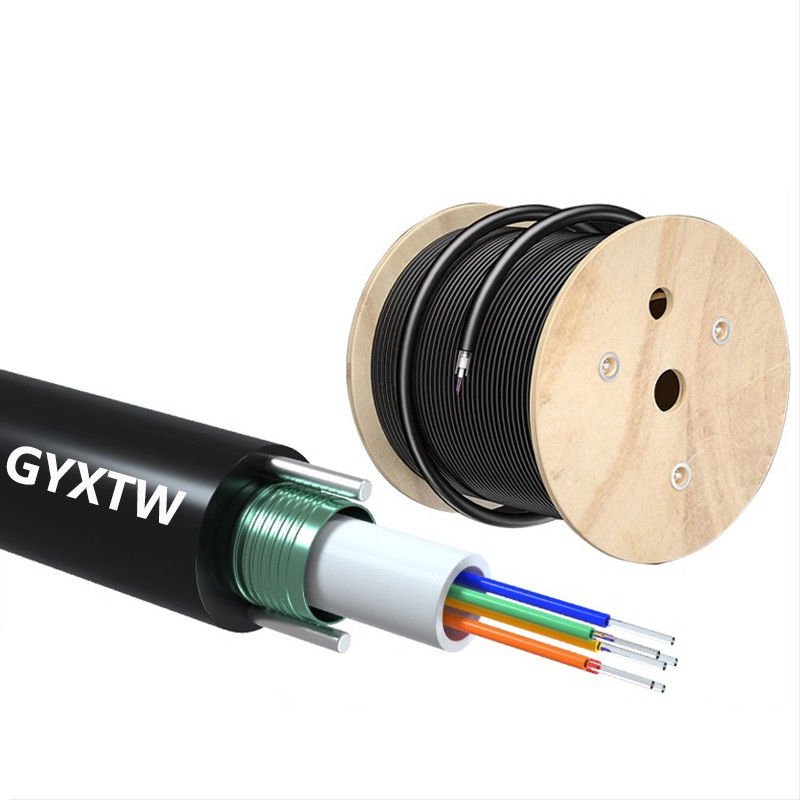

OUTDOOR BUNDLED TUBE FIBER CABLE GYXTW

Grade A fiber core/High-quality material selection/Quality assurance

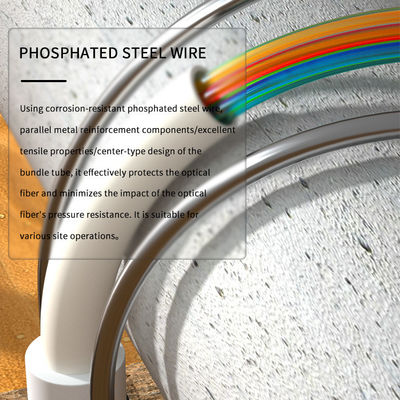

PHOSPHATED STEEL WIRE

Using corrosion-resistant phosphated steel wire, parallel metal reinforcement components/excellent tensile properties/center-type design of the bundle tube, it effectively protects the optical fiber and minimizes the impact of the optical fiber's pressure resistance. It is suitable for various site operations

IMPORTED MATERIALS

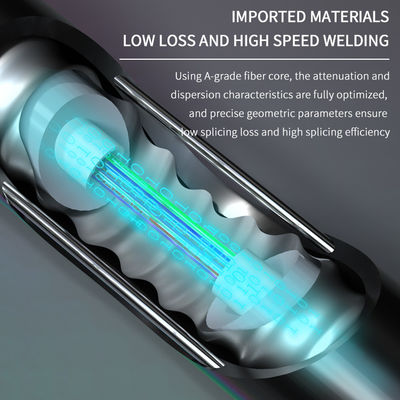

LOW LOSS AND HIGH SPEED WELDING

Using A-grade fiber core, the attenuation and dispersion characteristics are fully optimized, and precise geometric parameters ensure low splicing loss and high splicing efficiency

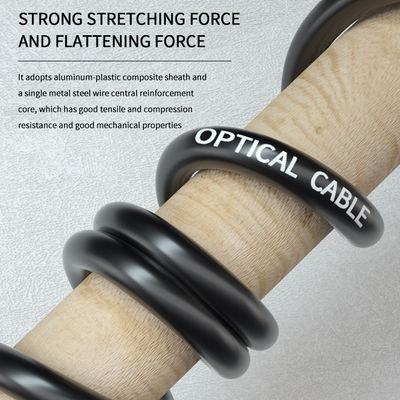

STRONG STRETCHING FORCE AND FLATTENING FORCE

It adopts aluminum-plastic composite sheath and a single metal steel wire central reinforcement core, which has good tensile and compression resistance and good mechanical properties

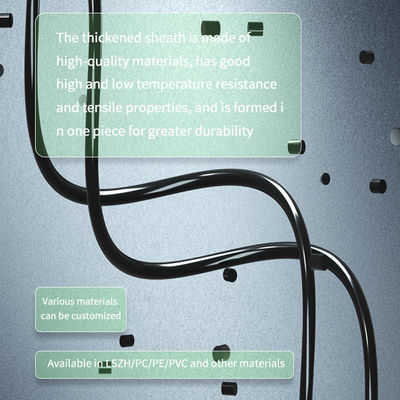

The thickened sheath is made of high-quality materials, has good high and low temperature resistance and tensile properties, and is formed in one piece for greater durability

Various materials can be customized

Available in LSZH/PC/PE/PVC and other materials

GYXTW

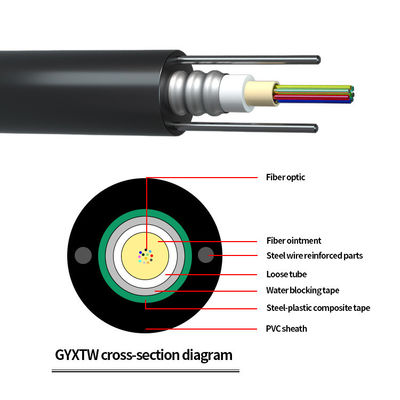

The structure of GYXTW optical cable is to insert single-mode or multi-mode optical fiber into a loose tube casing made of high-modulus poly material and filled with waterproof compound.

The loose tubes are twisted around the central strengthening core into a compact circular cable, and the gaps in the optical fiber cable core are filled with water-blocking fillers.

It has the characteristics of small diameter and light weight, and is suitable for pipeline, overhead and direct buried laying. The product has excellent mechanical properties and temperature characteristics, and is compatible with other telecommunications-grade optical fibers.

PRODUCT DESIGN

Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”

COMPANY PROFILE

Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. The company was founded in 2010 with its own brand HXCOWO, dedicated to providing optical fiber cabling system solutions for data centers, enterprise networks, and operators. Annually, there are a bunch of customers visited us from around the world. With over 10 years' development, a registered capital of USD 5 million, a 6,000 sqm workplace, 7 production assemblies were built and about 70 skilled workers were together. Our monthly output can reach up to 1500km fiber optic cables. With the belief of Quality is our culture & Long term business is our goal. So quality is always put to be a first place in our factory. With an excellent management system, we passed ISO9001:2015 certificate in 2021. on Jule 18, 2021, Alibaba group visited us and verified us. We gained the honorary and passed by world-leading inspection company Intertek group. We develop and produce a variety of fiber optical cables and patch cords. with Models such as FTTH, GYXTW, GYFTY, GYTS, GYTA, GYTA53, GYTS53, ADSS, GYTC8S etc. There are many Chinese companies and trading companies purchase fiber cables from us and resale it to the worldwide. Our products are exported to the Europe and America, Asia, South America, Africa etc. Welcome to visit our factory !

SERVICE & PRODUCTION CAPACITY

FOREIGN EXHIBITIONS

COOPERATIVE BRAND & CERTIFICATION

PAYMENT & TRANSPORTATION METHOD

FAQ

1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
