Fiber Optic Patch Cord
>

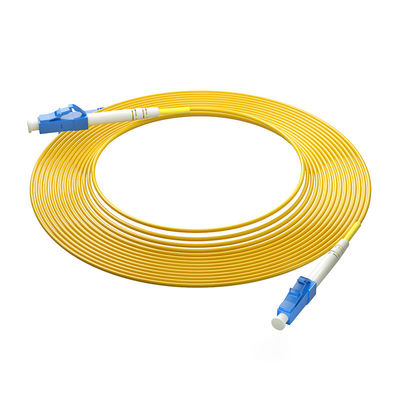

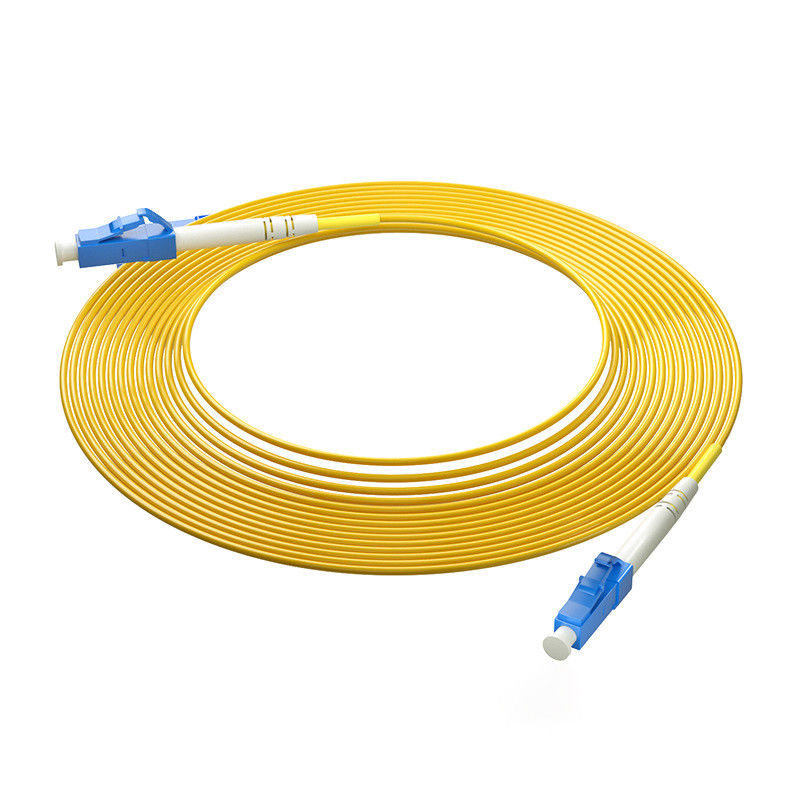

Customized Lengths LC-LC APC/UPC Single Mode Simplex Armored Fiber Optic Cable Patch

Customized Lengths LC-LC APC/UPC Single Mode Simplex Armored Fiber Optic Cable Patch

Brand Name: HXCOWO
Model Number: HX-TYTX1
MOQ: 100 pieces
Price: Negotiable
Packaging Details: OPP bag+Export cardboard box
Detail Information
Place of Origin:
Guangdong, China
Type:
Fiber Optic Patch Cord
Use:
FTTX
Warranty Time:
2 Year
Network:
Wired LAN, Wifi, 4g, Wiegand
Product Name:
Fiber Optic Patch Cord
Color:
Customized Colors
Application:
FTTH FTTxFTTB Network
Fiber Optic Cable Patch Type:
Ordinary Fiber Cable Patch&Armored Fiber Cable Patch
Material:
PVC LSZH
Fiber Type:
SM/MM/OM3
Wavelength:
850nm/1310nm/1550nm
Connector Type:
SC FC LC ST
Length:
Customized Lengths(1m/2m/3m...+1
Service:
OEM ODM Accept
Port:
Shenzhen
Supply Ability:
1500000 Piece/Pieces per Month
Product Description
PRODUCT PARAMETERS
Fiber optic outer diameter
φ0.9mm, φ2.0mm, φ3.0mm available
Insertion loss
≤0.2dB
Return loss
PC ≥ 40dB, UPC ≥ 50dB, APC ≥ 60dB
Interchangeability test
≤0.2dB
Vibration test
≤0.1dB (10-60Hz, 1.5mm amplitude)
Tensile strength test
≤0.1dB (0-15Hg tension, except for φ0.9mm fiber)
High-temperature test
≤0.2dB (+85℃, continuous for 100 hours)
Low-temperature test
≤0.2dB (-40℃, continuous for 100 hours)
Temperature cycling test
≤0.2dB (-40℃ to +85℃, after 5 cycles)
Humidity test
≤0.2dB (+25℃ to +65℃, relative humidity 93%, after 100 hours)

Common connectors
SC (standard connector)/LC (small form-factor connector)/FC (ferrule connector)/ST (straight tip connector)
APPLICATION SCOPE
Fiber optic communication systems, fiber optic access networks, fiber optic data transmission, fiber optic CATV, local area networks (LAN), testing equipment
PRODUCT DESCRIPTION
Customized Lengths LC-LC APC/UPC Single Mode Simplex Armored Fiber Optic Cable Patch 0

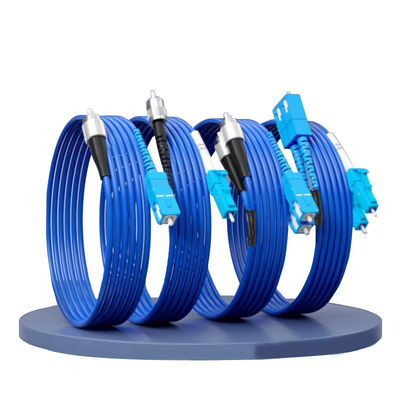

SINGLE/DUPLEX FIBER OPTIC PATCH CORDS & ARMORED PATCH CORDS(APC/UPC)
Efficient transmission/Low energy loss/Anti pull and anti drag
Customized Lengths LC-LC APC/UPC Single Mode Simplex Armored Fiber Optic Cable Patch 1

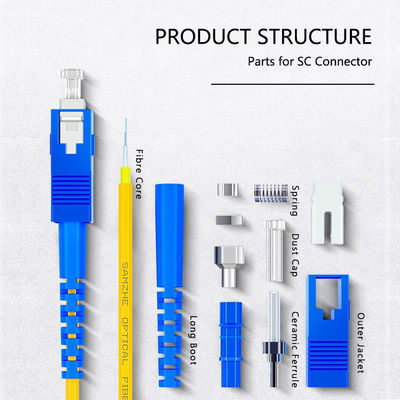

PRODUCT STRUCTURE
Parts for SC Connector
Fibre Core
Long Boot
Spring
Dust Cap
Ceramic Ferrule
Outer Jacket
Customized Lengths LC-LC APC/UPC Single Mode Simplex Armored Fiber Optic Cable Patch 2

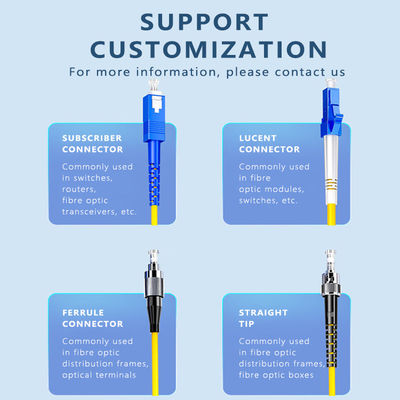

Subscriber Connector
Commonly used in switches, routers, fibre optic transceivers, etc.
Lucent Connector
Commonly used in fibre optic modules, switches, etc.
Ferrule Connector
Commonly used in fibre optic distribution frames, optical terminals
Straight Tip
Commonly used in fibre optic distribution frames, fibre optic boxes

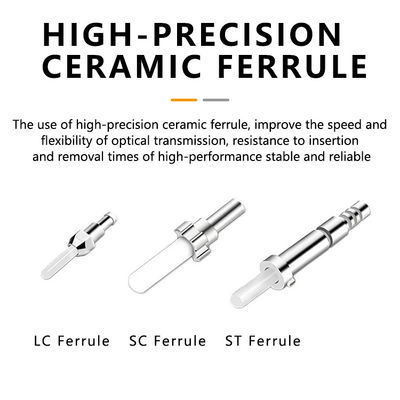

HIGH-PRECISION CERAMIC FERRULE
The use of high-precision ceramic ferrule, improve the speed and flexibility of optical transmission, resistance to insertion and removal times of high-performance stable and reliable
Customized Lengths LC-LC APC/UPC Single Mode Simplex Armored Fiber Optic Cable Patch 3
Customized Lengths LC-LC APC/UPC Single Mode Simplex Armored Fiber Optic Cable Patch 4
DUST CAPS FOR PROTECTION
Matching dust cap on the connector protects the connector insert from damage, and dust impurities affecting optical transmission.

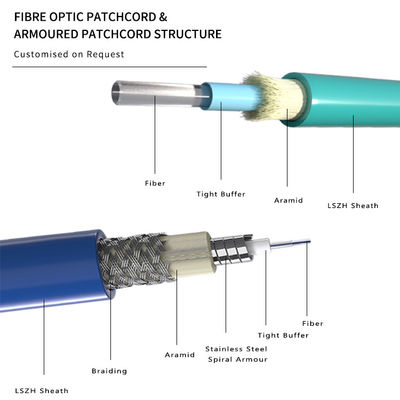

FIBRE OPTIC PATCHCORD & ARMOURED PATCHCORD STRUCTURE
Customised on Request
Customized Lengths LC-LC APC/UPC Single Mode Simplex Armored Fiber Optic Cable Patch 5
Customized Lengths LC-LC APC/UPC Single Mode Simplex Armored Fiber Optic Cable Patch 6
LSZH OUTER SHEATH
High quality LSZH/PVC material outer protection Tensile, bending and corrosion resistance

HIGH-PRECISION GRINDING EQUIPMENT
Ensure that the round centre of the fibre is ground offset and the fibre is recessed, and that the surface of the fibre is free from scratches or defects.
Customized Lengths LC-LC APC/UPC Single Mode Simplex Armored Fiber Optic Cable Patch 7
Customized Lengths LC-LC APC/UPC Single Mode Simplex Armored Fiber Optic Cable Patch 8
SUPPORTS HOT-SWAPPING WITH LOW INSERTION LOSS
The core is exquisitely ground and made with high insertion and extraction times and long service life.

INSERTION/RETURN LOSS TEST
≤0.2dB
Insertion Losses
≥50dB
Return Losses
Customized Lengths LC-LC APC/UPC Single Mode Simplex Armored Fiber Optic Cable Patch 9
END-FACE INSPECTION
MULTIPLE OPTIONS AVAILABLE
Customized Lengths LC-LC APC/UPC Single Mode Simplex Armored Fiber Optic Cable Patch 10
Customized Lengths LC-LC APC/UPC Single Mode Simplex Armored Fiber Optic Cable Patch 11
Customized Lengths LC-LC APC/UPC Single Mode Simplex Armored Fiber Optic Cable Patch 12
PRODUCT DESIGN
Customized Lengths LC-LC APC/UPC Single Mode Simplex Armored Fiber Optic Cable Patch 13
Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”
Customized Lengths LC-LC APC/UPC Single Mode Simplex Armored Fiber Optic Cable Patch 14
COMPANY PROFILE
Customized Lengths LC-LC APC/UPC Single Mode Simplex Armored Fiber Optic Cable Patch 15
Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. The company was founded in 2010 with its own brand HXCOWO, dedicated to providing optical fiber cabling system solutions for data centers, enterprise networks, and operators. Annually, there are a bunch of customers visited us from around the world. With over 10 years' development, a registered capital of USD 5 million, a 6,000 sqm workplace, 7 production assemblies were built and about 70 skilled workers were together. Our monthly output can reach up to 1500km fiber optic cables.
With the belief of Quality is our culture & Long term business is our goal. So quality is always put to be a first place in our factory. With an excellent management system, we passed ISO9001:2015 certificate in 2021. on Jule 18, 2021, Alibaba group visited us and verified us. We gained the honorary and passed by world-leading inspection company Intertek group. We develop and produce a variety of fiber optical cables and patch cords. with Models such as FTTH, GYXTW, GYFTY, GYTS, GYTA, GYTA53, GYTS53, ADSS, GYTC8S etc. There are many Chinese companies and trading companies purchase fiber cables from us and resale it to the worldwide. Our products are exported to the Europe and America, Asia, South America, Africa etc. Welcome to visit our factory !
SERVICE & PRODUCTION CAPACITY
Customized Lengths LC-LC APC/UPC Single Mode Simplex Armored Fiber Optic Cable Patch 16
FOREIGN EXHIBITIONS
Customized Lengths LC-LC APC/UPC Single Mode Simplex Armored Fiber Optic Cable Patch 17
COOPERATIVE BRAND & CERTIFICATION
Customized Lengths LC-LC APC/UPC Single Mode Simplex Armored Fiber Optic Cable Patch 18
PAYMENT & TRANSPORTATION METHOD
Customized Lengths LC-LC APC/UPC Single Mode Simplex Armored Fiber Optic Cable Patch 19
FAQ
1. Are you the real manufacturer?
Yes.  We are the real manufacturer  with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?
We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.


9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
