Indoor Outdoor Armored Fiber
>
Anti Rat Bite GJSFJV Fiber Optical Cable Armored Fiber Optic HXCOWO Indoor 1/2/4 Core

Anti Rat Bite GJSFJV Fiber Optical Cable Armored Fiber Optic HXCOWO Indoor 1/2/4 Core

Brand Name: HXCOWO
Model Number: HX-LXK4
MOQ: 1000 meters
Price: Negotiable
Packaging Details: Wooden shaft+Export cardboard box
Detail Information
Place of Origin:
Guangdong, China
Certification:
RoHS
Type:
Spiral Armored Optical Cable, Fiber Optic Cable
Number Of Conductors:
≥ 10
Product Name:
Spiral Armored Optical Cable
Application:
Telecom Comunication
Color:
Customized Color
Jacket:
PVC LSZH LSOH PE HDPE
Length:
Custom Length
Fiber Type:
G652D/G657A1/G657A2/OM1/OM2/OM3/OM4
Fiber Count:
2-288 Cores
Function:
Dustproof
Port:
Shenzhen
Supply Ability:
1500000 Piece/Pieces per Month
Highlight:

Anti Rat Bite GJSFJV Fiber Cable

,

Cable Armored Fiber Optic HXCOWO

Product Description

Anti Rat Bite GJSFJV Fiber Optical Cable 2-288 Cores Dustproof HXCOWO Indoor 1/2/4 Core

PRODUCT PARAMETERS



Tabulation
Single mode
Multi mode
Multi mode
Fiber core diameter
9±0.4
50±2.5
62.5±2.5
Cladding diameter
125±1
125±1
125±1

Fiber optic cable loss
0.4bd/km@1310nm
3.5bd/km@850nm
3.5bd/km@850nm

0.3bd/km@1550nm
1.5bd/km@1300nm
1.5bd/km@1300nm
Outer diameter of fiber optic cable
2.9±0.1


Number of fiber cores
2-288Core


Fiber optic cable weight
~15


Temperature performance
-20 ℃ -+70 ℃


Bending radius
Dynamic 20x OD/Static 10x OD


Compressive strength
Long term 1000/Short term 3000


Tensile strength
Dynamic 300/Static 600


Sheath material
PVC, LSZH, PE, PU, PTEE, SGS, UL


Sheath color
Multiple colors available


PRODUCT DESCRIPTION
Anti Rat Bite GJSFJV Fiber Optical Cable Armored Fiber Optic HXCOWO Indoor 1/2/4 Core 0

SPIRAL STEEL ARMORED FIBER OPTIC CABLE


Tensile anti-interference
Good bending performance
High speed and stable transmission

Anti Rat Bite GJSFJV Fiber Optical Cable Armored Fiber Optic HXCOWO Indoor 1/2/4 Core 1
SIX CORE ADVANTAGES

High quality fiber core
Long transmission distance
Low anti-interference loss
Lightning transmission
Waterproof and wear-resistant
Flexible bending
Anti Rat Bite GJSFJV Fiber Optical Cable Armored Fiber Optic HXCOWO Indoor 1/2/4 Core 2

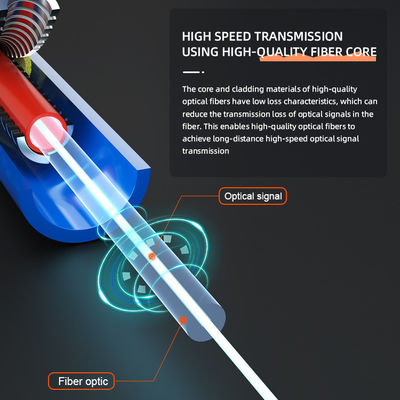

HIGH SPEED TRANSMISSION
USING HIGH-QUALITY FIBER CORE
The core and cladding materials of high-quality optical fibers have low loss characteristics, which can reduce the transmission loss of optical signals in the fiber. This enables high-quality optical fibers to achieve long-distance high-speed optical signal transmission
Anti Rat Bite GJSFJV Fiber Optical Cable Armored Fiber Optic HXCOWO Indoor 1/2/4 Core 3

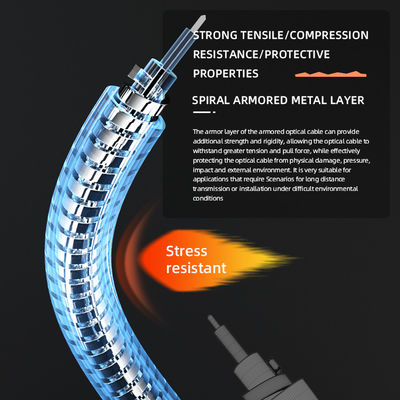

STRONG TENSILE/COMPRESSION RESISTANCE/PROTECTIVE PROPERTIES
SPIRAL ARMORED METAL LAYER
The armor layer of the armored optical cable can provide additional strength and rigidity, allowing the optical cable to withstand greater tension and pull force, while effectively protecting the optical cable from physical damage, pressure, impact and external environment. It is very suitable for applications that require Scenarios for long distance transmission or installation under difficult environmental conditions

Anti Rat Bite GJSFJV Fiber Optical Cable Armored Fiber Optic HXCOWO Indoor 1/2/4 Core 4

FLEXIBLE/STRONG BENDING PERFORMANCE/EASY TO INSTALL

Although armored optical cable has an armor layer, it still has relatively good flexibility and bending performance and can be used in different bending radii, which makes armored optical cable easier to install and maintain

Anti Rat Bite GJSFJV Fiber Optical Cable Armored Fiber Optic HXCOWO Indoor 1/2/4 Core 5

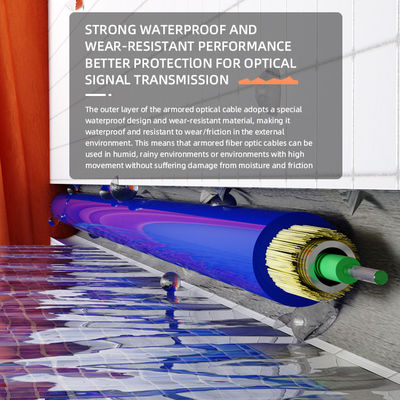

STRONG WATERPROOF AND WEAR-RESISTANT PERFORMANCE
BETTER PROTECTlON FOR OPTICAL SIGNAL TRANSMISSION


The outer layer of the armored optical cable adopts a special waterproof design and wear-resistant material, making it waterproof and resistant to wear/friction in the external environment. This means that armored fiber optic cables can be used in humid, rainy environments or environments with high movement without suffering damage from moisture and friction


Anti Rat Bite GJSFJV Fiber Optical Cable Armored Fiber Optic HXCOWO Indoor 1/2/4 Core 6

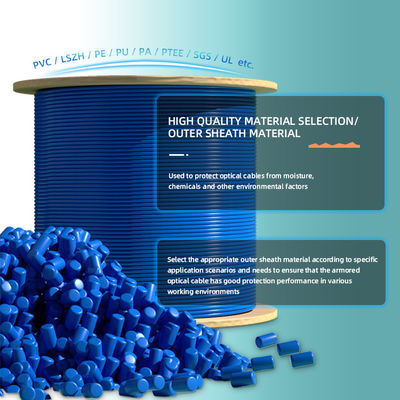

HIGH QUALITY MATERIAL SELECTION/OUTER SHEATH MATERIAL
Used to protect optical cables from moisture, chemicals and other environmental factors
Select the appropriate outer sheath material according to specific application scenarios and needs to ensure that the armored optical cable has good protection performance in various working environments
Anti Rat Bite GJSFJV Fiber Optical Cable Armored Fiber Optic HXCOWO Indoor 1/2/4 Core 7

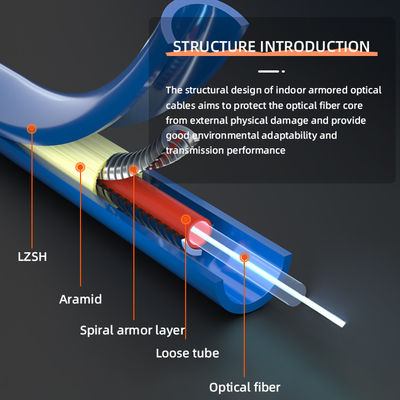

STRUCTURE INTRODUCTION
The structural design of indoor armored optical cables aims to protect the optical fiber core from external physical damage and provide good environmental adaptability and transmission performance
Supports customization of size/core number and structural requirements
Anti Rat Bite GJSFJV Fiber Optical Cable Armored Fiber Optic HXCOWO Indoor 1/2/4 Core 8

Anti Rat Bite GJSFJV Fiber Optical Cable Armored Fiber Optic HXCOWO Indoor 1/2/4 Core 9
PRODUCT DESIGN
Anti Rat Bite GJSFJV Fiber Optical Cable Armored Fiber Optic HXCOWO Indoor 1/2/4 Core 10
Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”
Anti Rat Bite GJSFJV Fiber Optical Cable Armored Fiber Optic HXCOWO Indoor 1/2/4 Core 11
COMPANY PROFILE

Anti Rat Bite GJSFJV Fiber Optical Cable Armored Fiber Optic HXCOWO Indoor 1/2/4 Core 12
Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. The company was founded in 2010 with its own brand HXCOWO, dedicated to providing optical fiber cabling system solutions for data centers, enterprise networks, and operators. Annually, there are a bunch of customers visited us from around the world. With over 10 years' development, a registered capital of USD 5 million, a 6,000 sqm workplace, 7 production assemblies were built and about 70 skilled workers were together. Our monthly output can reach up to 1500km fiber optic cables. With the belief of Quality is our culture & Long term business is our goal. So quality is always put to be a first place in our factory. With an excellent management system, we passed ISO9001:2015 certificate in 2021. on Jule 18, 2021, Alibaba group visited us and verified us. We gained the honorary and passed by world-leading inspection company Intertek group. We develop and produce a variety of fiber optical cables and patch cords. with Models such as FTTH, GYXTW, GYFTY, GYTS, GYTA, GYTA53, GYTS53, ADSS, GYTC8S etc. There are many Chinese companies and trading companies purchase fiber cables from us and resale it to the worldwide. Our products are exported to the Europe and America, Asia, South America, Africa etc. Welcome to visit our factory !
SERVICE & PRODUCTION CAPACITY
Anti Rat Bite GJSFJV Fiber Optical Cable Armored Fiber Optic HXCOWO Indoor 1/2/4 Core 13
FOREIGN EXHIBITIONS
Anti Rat Bite GJSFJV Fiber Optical Cable Armored Fiber Optic HXCOWO Indoor 1/2/4 Core 14
COOPERATIVE BRAND & CERTIFICATION
Anti Rat Bite GJSFJV Fiber Optical Cable Armored Fiber Optic HXCOWO Indoor 1/2/4 Core 15
PAYMENT & TRANSPORTATION METHOD
Anti Rat Bite GJSFJV Fiber Optical Cable Armored Fiber Optic HXCOWO Indoor 1/2/4 Core 16
FAQ
1. Are you the real manufacturer?
Yes.  We are the real manufacturer  with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?
We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
